Spellman High Voltage Electronics Corporation is the world’s leading high voltage power supply, X-Ray generator and Monoblock® X-Ray source manufacturer.

Spellman provides both standard and custom designed high voltage power supply and X-Ray source solutions for a wide array of applications. The value we provide to you is in not only the quality and performance of our high voltage power supplies, but also in the deep understanding we have of how power supplies are used in these applications. Leveraging our 75 years of experience providing solutions to science and industry, we can also work with you, as an extension of your design team, to find a custom solution to your unique requirements.

Below you will find a list of some of the many application areas where Spellman high voltage power supplies are used. Models typically used in these applications can be viewed by clicking on the Show Products link. Of course, if you don't see an application or product that meets you needs, contact our experienced sales engineers for guidance or suggestions.

C-ARM

小型かつ高周波のX線発生装置は、Cアームシステムによる撮影や透視に必要な、高速かつ安定した曝射を実現します。スペルマン社のソリューションは、スペース、画質、線量管理が極めて重要となる移動型および固定型イメージングシステムへの確実な組み込みを可能にするよう設計されています。

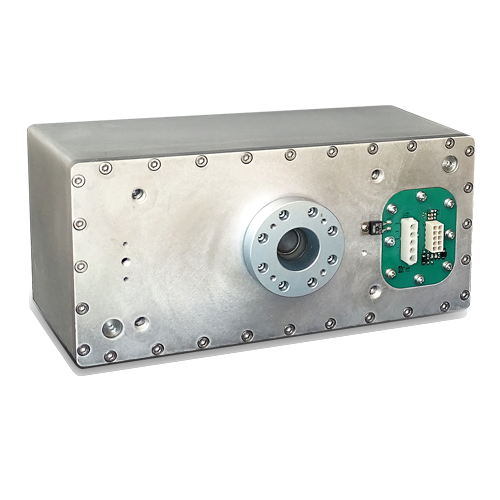

MMB125PN3.5

Power:

3.5kW - 3.5kW

Voltage:

40kV - 125kV

DNAシーケンサー

Spellman supports DNA sequencer platforms with ultra-low-noise, high-stability high voltage modules (MPS and PMT series), offering precise output control and optional RS-232/RS-485 interfaces for reliable integration into analytical instrumentation.

MPS

Power:

10W - 10W

Voltage:

1kV - 30kV

E-Beam Curing

Spellman supports e-beam curing systems with high voltage power platforms (SL, ST, STA, STR) that combine compact integration, robust arc/short-circuit protection, and Ethernet/analog remote control—built for demanding industrial processes where uptime and repeatability matter.

E-Beam Welding

A stable accelerating voltage is essential for producing the concentrated electron beam used in precision welding. Spellman power supplies help maintain consistent beam energy and penetration for clean, repeatable welds with a narrow heat-affected zone.

Electrostatic Flocking

In electrostatic flocking, high voltage charges millions of fine fibers and aligns them as they travel toward an adhesive-coated surface. Precise voltage control helps produce dense, uniform coverage across textiles, automotive components and other finished products.

EBM-TEG

Power:

5W - 5W

Voltage:

30kV - 30kV

Electrostatic Oilers

Charging atomized oil droplets allows electrostatic oilers to apply thin, even coatings with less overspray and waste. Stable high-voltage performance supports accurate deposition on sheet metal and other materials moving through continuous production lines.

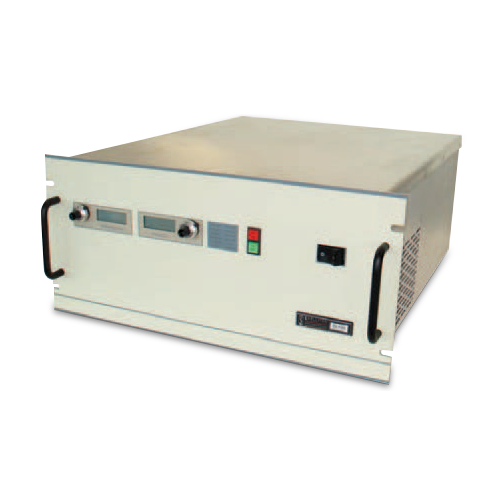

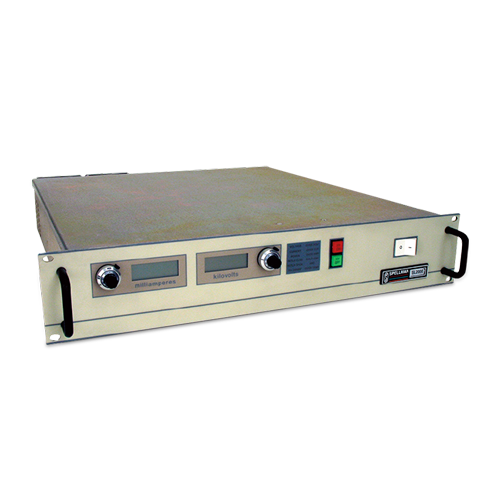

SL

Power:

10W - 1200W

Voltage:

1kV - 130kV

Electrostatic-Printing

Electrostatic printing relies on carefully controlled electrical charges to create an image and transfer toner or ink to the printing surface. Low-ripple high-voltage outputs help maintain sharp image reproduction, consistent density and dependable operation at production speeds.

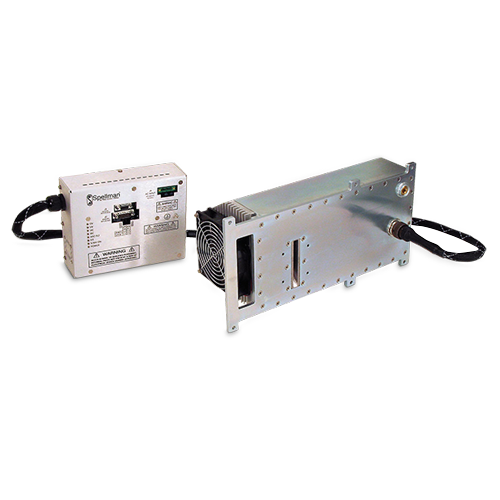

Energy Dispersive X-ray Fluorescence (EDXRF)

EDXRF systems identify elements by measuring the energy of the fluorescent X-rays emitted from an excited sample. A stable, low-ripple X-ray source improves measurement repeatability and supports accurate analysis in benchtop, handheld and inline instruments.

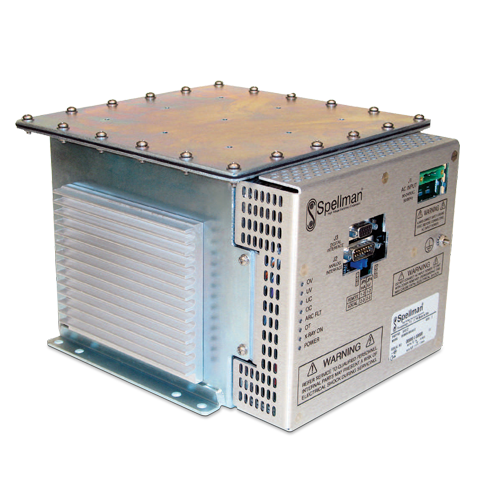

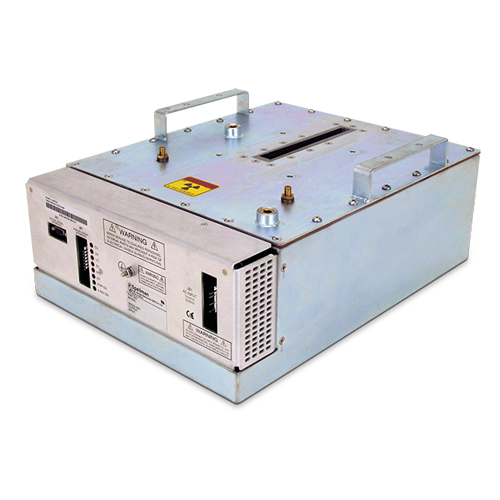

XRF

Power:

80W - 640W

Voltage:

160kV - 160kV

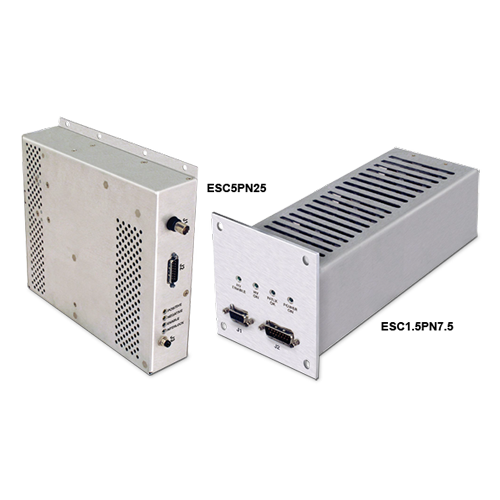

Eチャック (E CHUCK)

半導体および液晶パネルの製造プロセスでは、以前は真空チャックおよびメカニカルチャックシステムを使用して、取り扱い用の基板を固定してきました。しかし、吸着、歪みの影響、および信頼性の向上が求められるなか、これらを克服するために、静電力を利用するチャックが今の世代の半導体ファブ機器に広く採用されています。静電チャックは、プラテンとウェーハの間に静電力を設定するために高電圧でバイアスされた電極を備えたプラテンを備えています。クーロンタイプとジョンセンラーベックタイプの2種類の静電チャックがあります。これらは、誘電体の特性、したがってクランプ力の生成方法によって区別されます。クーロンチャックは、従来の誘電体コンデンサのように機能します。J-Rタイプは抵抗が大きいが有限であるため、表面が接触して電圧が印加されると、J-Rタイプと基板に電流が流れます。電荷は基板と誘電体の間の界面に蓄積し、クランプ力を提供します。. . さらに、チャック上の異なる数の電極（または極）は異なる特性を得る為に使用されます。用途に応じて、単極、双極（2極）、多極チャック（6相六極タイプを含む）があります。スペルマンは、次のような機能を備えたeチャックの全範囲に電源を提供しています。 • 高圧バイポーラ出力（正/負） • ウェーハのチャッキング/デチャッキングを容易にする出力極性反転機能 • 静電容量測定（クーロンチャック）または電流測定（J-Rチャック）によるウェーハのチャッキング状態の検出機能 • さまざまなシステムとのインターフェースとなるアナログおよびシリアルインターフェース • 機械的リレーを排除した高電圧電源による高信頼性スペルマンは、広範な設計知識と製造能力を備えており、さまざまな要件を満たすカスタマイズされた製品にも対応することもできます。アプリケーションによっては、高圧バイアス/オフセット、およびカスタマイズされたソリューションも提供できるR.F.フィルタリングも含まれる場合があります。

Fill Level Inspection

High-speed X-ray inspection makes it possible to verify product levels inside sealed or opaque containers without opening them. Compact generators provide the consistent exposures needed to detect underfills, overfills and missing contents while keeping pace with automated packaging lines.

Flash Lamps

Flash lamp applications require stored high-voltage energy to be released in short, intense bursts of light. Fast, repeatable capacitor charging supports consistent pulse energy in laser systems, optical instruments, curing equipment and other light-based technologies.

Fluoroscopy

High frequency X-Ray Generators for Radiography and Fluoroscopy. Up to 150kV outputs from 32kW-80kW. High frequency diagnostic imaging generators.

HFeシリーズ

Power:

40kW - 80kW

Voltage:

40kV - 150kV

Gamma Cameras

Gamma cameras form images by detecting radiation emitted from a tracer inside the body. Stable, low-noise high-voltage bias helps photomultiplier tubes maintain consistent gain, supporting image uniformity and accurate nuclear medicine studies.

UMWシリーズ

Power:

60W - 125W

Voltage:

8kV - 20kV

Gamma Detectors

Detecting low-level gamma radiation requires clean, dependable power at the sensing stage. Spellman high-voltage supplies provide stable bias for photomultiplier tubes and other detectors, helping preserve signal integrity in medical, scientific and industrial measurement systems.

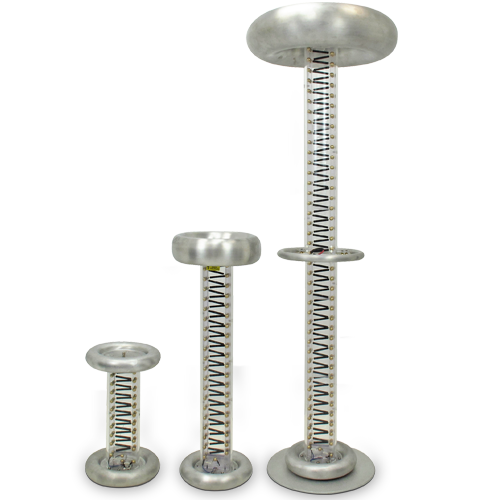

High Voltage Power Supply Dividers

Precision voltage dividers reduce high-voltage outputs to proportional signals that can be safely measured by control and monitoring circuits. Accurate divider performance is essential for regulation, calibration, feedback and protection within high-voltage systems.

HVD

Power:

N/A

Voltage:

100kV - 400kV

High Voltage Power Supply Measurement

High voltage measurement solutions for test and monitoring applications, including precision dividers designed for accurate readings, high input impedance, and reliable performance in demanding environments.

HVD

Power:

N/A

Voltage:

100kV - 400kV

Image Guided Surgery

Real-time imaging gives surgeons greater visibility while navigating anatomy and positioning instruments. Fast, precisely controlled X-ray exposures support the radiographic and fluoroscopic guidance used in advanced surgical navigation, interventional and robotic platforms.

HFeシリーズ

Power:

40kW - 80kW

Voltage:

40kV - 150kV

Microwave Heating System

Industrial microwave systems use high voltage to power the magnetrons that generate microwave energy. Efficient, reliable power conversion supports uniform heating in applications such as drying, curing, cooking, rubber processing and advanced materials manufacturing.

PCB Inspection

High-resolution X-ray inspection reveals hidden solder joints, vias, component alignment, and internal defects that aren’t visible from the surface. Spellman’s stable, precisely controlled X-ray generation supports reliable inspection of densely populated circuit boards in automated production and quality-control systems.

XLF

Power:

600W - 1200W

Voltage:

30kV - 60kV
