SLシリーズ
- 非常に小型で軽量
- 電圧範囲1kV～130kV
- 豊富なアナログ、デジタルインターフェイス
- 極性逆転可能基準電圧最大8kV
- アーク消去/アークカウント/アークトリップ
- OEMカスタム化可能
Certifications & Compliance
10～1200W高電圧電源
SLシリーズの高圧電源は、コンパクトでありながら比類なき性能標準機能を備えるよう設計されています。SLの独自制御の共振高周波インバータ設計で、アーク状態、非常に大きなトランジェント状況下においても85%以上の効率で誤動作の無い動作をします。
多種のオプションや広範囲の出力電圧を可能にする特徴を持った電源です。
- 仕様
- モデル
- ご注文方法
- ダウンロード
仕様
- Input:
115Vac or 220Vac±10%, 50/60Hz. Specify with order. 1200W model available in 200/220Vac only. - Output:
Models available from 1kV to 130kV. Each model is available in positive, negative or reversible polarity output. - Dimensions:
10W – 300W:
13 /4”H(1U) x 19”W x 19”D**
(4.45cm x 48.3cm x 48.3cm)
600W – 1200W:
31 /2”H(2U) x 19”W x 19”D**
(8.9cm x 48.3cm x 48.3cm).
**Depth becomes 24” (60.7cm) for 80 to 130kV ranges - Quick Delivery Program

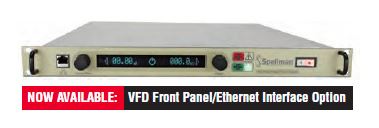

In the selection tables to the right, SL models shown in RED are available via Spellman’s Quick Delivery Program. Please contact Spellman sales for details. - The eSL Option provides a vacuum fluorescent front
panel display and Ethernet connectivity. Both the 1U
(1.75”) and 2U (3.5”) SL product offerings are available
with the eSL Option. Using the front panel local controls
the main menu has the following features:
Local/Remote Control
Allows operation from either the local front panel or remotely via the Ethernet Category 5 connector.
eSL Option power supplies can still be fully controlled via the SL’s comprehensive remote analog interface, so these units are fully backwards compatible with standard SL power supplies.
モデル
SL SELECTION TABLE - 10W, 30W, 60W 1.75" (1U)
| 10 Watt | 30 Watt | 60 Watt | ||||
|---|---|---|---|---|---|---|
| KV | mA | Model | mA | Model | mA | Model |
| 1 | 10 | SL1PN10 | 30 | SL1PN30 | 60 | SL1PN60 |
| 2 | 5 | SL2PN10 | 15 | SL2PN30 | 30 | SL2PN60 |
| 3 | 3.3 | SL3PN10 | 10 | SL3PN30 | 20 | SL3PN60 |
| 6 | 1.7 | SL6PN10 | 5 | SL6PN30 | 10 | SL6PN60 |
| 8 | 1.25 | SL8PN10 | 3.75 | SL8PN30 | 7.5 | SL8PN60 |
| 10 | 1.0 | SL10*10 | 3 | SL10*30 | 6 | SL10*60 |
| 15 | 0.67 | SL15*10 | 2 | SL15*30 | 4 | SL15*60 |
| 20 | 0.50 | SL20*10 | 1.5 | SL20*30 | 3 | SL20*60 |
| 30 | 0.33 | SL30*10 | 1.0 | SL30*30 | 2 | SL30*60 |
| 40 | 0.25 | SL40*10 | 0.75 | SL40*30 | 1.5 | SL40*60 |
| 50 | 0.20 | SL50*10 | 0.60 | SL50*30 | 1.2 | SL50*60 |
| 60 | 0.17 | SL60*10 | 0.50 | SL60*30 | 1.0 | SL60*60 |
| 70 | 0.14 | SL70*10 | 0.43 | SL70*30 | 0.85 | SL70*60 |
| 80 | 0.13 | SL80*10 | 0.38 | SL80*30 | 0.75 | SL80*60 |
| 100 | 0.10 | SL100*10 | 0.30 | SL100*30 | 0.60 | SL100*60 |
| 120 | 0.10 | SL120*10 | 0.25 | SL120*30 | 0.50 | SL120*60 |
| 130 | 0.10 | SL130*10 | 0.25 | SL130*30 | 0.46 | SL130*60 |
*Specify “P” for positive, “N” for negative, or “PN” for reversible polarity. Higher voltage models available on special order.
SL SELECTION TABLE - 150W, 300W 1.75" (1U)
| 150 Watt | 300 Watt | |||
|---|---|---|---|---|
| kV | mA | Model | mA | Model |
| 1 | 150 | SL1PN150 | 300 | SL1PN300 |
| 2 | 75 | SL2PN150 | 150 | SL2PN300 |
| 3 | 50 | SL3PN150 | 100 | SL3PN300 |
| 6 | 25 | SL6PN150 | 50 | SL6PN300 |
| 8 | 18.75 | SL8PN150 | 37.5 | SL8PN300 |
| 10 | 15 | SL10*150 | 30 | SL10*300 |
| 15 | 10 | SL15*150 | 20 | SL15*300 |
| 20 | 7.5 | SL20*150 | 15 | SL20*300 |
| 30 | 5.0 | SL30*150 | 10 | SL30*300 |
| 40 | 3.75 | SL40*150 | 7.5 | SL40*300 |
| 50 | 3.00 | SL50*150 | 6.0 | SL50*300 |
| 60 | 2.50 | SL60150 | 5.0 | SL60*300 |
| 70 | 2.1 | SL70*150 | 4.28 | SL70*300 |
| 80 | 1.90 | SL80*150 | 3.75 | SL80*300 |
| 100 | 1.50 | SL100*150 | 3.00 | SL100*300 |
| 120 | 1.25 | SL120*150 | 2.50 | SL120*300 |
| 130 | 1.15 | SL130*150 | 2.30 | SL130*300 |
*Specify “P” for positive, “N” for negative, or “PN” for reversible polarity. Higher voltage models available on special order.
SL SELECTION TABLE - 600W, 1200W
| 600 Watt | 1200 Watt | |||
|---|---|---|---|---|
| kV | mA | Model | mA | Model |
| 1 | 600 | SL1PN600 | 1200 | SL1PN1200 |
| 2 | 300 | SL2PN600 | 600 | SL2PN1200 |
| 3 | 200 | SL3PN600 | 400 | SL3PN1200 |
| 6 | 100 | SL6PN600 | 200 | SL6PN1200 |
| 8 | 75 | SL8PN600 | 150 | SL8PN1200 |
| 10 | 60 | SL10*600 | 120 | SL10*1200 |
| 15 | 40 | SL15*600 | 80 | SL15*1200 |
| 20 | 30 | SL20*600 | 60 | SL20*1200 |
| 30 | 20 | SL30*600 | 40 | SL30*1200 |
| 40 | 15 | SL40*600 | 30 | SL40*1200 |
| 50 | 12 | SL50*600 | 24 | SL50*1200 |
| 60 | 10 | SL60600 | 20 | SL60*1200 |
| 70 | 8.6 | SL70*600 | 17 | SL70*1200 |
| 80 | 7.5 | SL80*600 | 15 | SL80*1200 |
| 100 | 6.0 | SL100*600 | 12 | SL100*1200 |
| 120 | 5.0 | SL120*600 | 10 | SL120*1200 |
| 130 | 4.6 | SL130*600 | 9.2 | SL130*1200 |
*Specify “P” for positive, “N” for negative, or “PN” for reversible polarity. Higher voltage models available on special order.
ご注文方法
| How to Order: |
|---|
| Sample model number: SL80PN1200/NSS/DPM4 SL series unit, 80kV maximum output voltage, reversible polarity output, 1200 watts, no slow start, 4.5 digit panel meters |
There may be some restrictions on multiple option combinations. Please contact our Sales department for more details.
用途
- 分析用X線
- 電子ビーム・システム
- ハイポット・テスト
- 静電気
- コンデンサ充電
- 一般研究用
