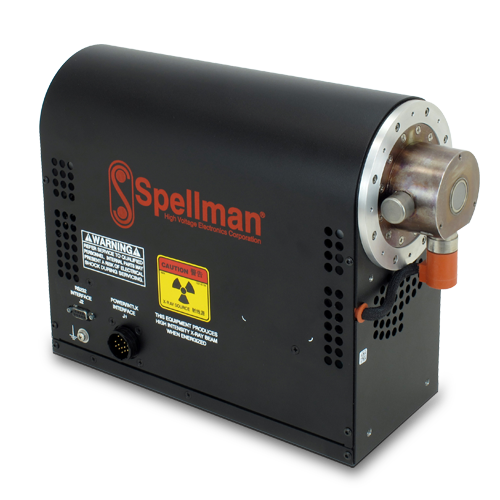

uXRB130P65 Monoblock® X-Ray source

uXRB130P65

  • Integrated X-Ray Tube and Control Electronics in One Compact Assembly
  • Standard RS-232 Digital Interface Offers Access to Diagnostics and Operating Logs
  • Standard Windows Test GUI
  • 7 Micron Focal Spot for Narrow Beam
  • 8 Micron Focal Spot for Wide Beam
  • 10mm/14mm Spot to Window Spacing Provides High Geometric Magnification

*Note: All specifications are subject to change without notice. Please consult the English PDF version of this datasheet for the most up-to-date revision.

130kV @ 65W X-Ray Source

Spellman’s μXRB130P65 microfocus Monoblock® X-Ray sources are designed for high resolution imaging applications powering its internal microfocus X-Ray tube up to 130kV @ 65W. Features like 24Vdc input voltage, small package size and standard RS-232 digital interface simplify integrating the μXRB130P65 into your X-Ray system. The small, round focal spot size, optimized over the range of operating voltage, and high magnification, combined with stable high intensity output provides distortion free, superior quality 2D and 3D images.

Typical applications

Industrial X-Ray:

  • Circuit board and electronic component inspection
  • High resolution Non Destructive Testing of metal and plastic parts
  • Micro CT for Industrial applications
  • Battery inspection

Medical X-Ray:

  • Micro CT for life sciences applications

Specifications

(Ref. 128082-001 REV. A)

Options:

WB  Wide Beam

ET  Extended Tube (wide beam only)

LW  Light Weight

Specifications:

Narrow Beam Benefits (Standard):

The small round spot is optimized over the range of kV and power to provide distortion free images. Operated at 4 watts yields a 6 micron spot for high resolution imaging. The 14mm spot to window spacing offers high geometric magnification.

Narrow Beam X-Ray Characteristics (Standard):

Spot Ellipticity: ±20% @ 16 watts, 130kV (either axis referred to average)

Beam Geometry: ≥ 53°, round beam, uniform beam profile in any direction

Spot to Window Spacing: 14mm ±0.5mm

Window Diameter ≈19mm

Window Material and Thickness: Beryllium, 0.25mm

Target Material: Tungsten

Wide Beam Benefits (WB Option):

The 115 degree round beam is well suited for automated
inspection where a large field of view is required for maximum throughput or off angled views. The 10mm spot to window spacing provides superior high geometric
magnification.

Wide Beam X-Ray Characteristics (WB Option):

Voltage measured across the X-Ray tube is within ±2% of the programmed value

Spot Ellipticity:

±20% @ 16 watts, 130kV (either axis referred to average)

Cone of Illumination: 115°, round beam, uniform beam profile in any direction

Spot to Window Spacing: 10mm ±0.5mm

Window Diameter (uncollimated): ≈38mm

Window Material and Thickness: Beryllium, 0.51mm

Target Material: Tungsten

X-Ray Leakage: Behind X-Ray tube is ≤0.5mR/hr at 2.55cm

Input Voltage:

+24-27Vdc

Input Current:

<6 amps

Anode Supply:

Output Voltage: 20kV to 130kV (referenced to Cathode Gun Supply)

Output Current: up to 0.5mA, from 20kV to 130kV

Environmental:

Operating Temperature: 0°C to +32°C

Storage Temperature: -20°C to +70°C

Humidity: 0 to 95%, non-condensing

Altitude: Up to 5,000 feet (1524 meters)

Cooling:

Internal fan is incorporated. Adequate air circulation around unit must be provided.

Digital Interface:

RS-232

Analog Interface:

0 to 10Vdc ground referenced signals

Digital Interface:

RS-232 interface.

Mechanical:

See drawings

Weight:

Standard: 30lbs. (13.60kg)

Standard/Extended Tube: 34lbs. (15.40kg)

Light Weight (LW option): 23lbs. (10.43kg)

Light Weight/Extended Tube: 27lbs. (12.24kg)

Regulatory Approvals:

Compliant to EEC EMC Directive.

Compliant to EEC Low Voltage Directive.

Graphical User Interface

J1 INPUT/OUTPUT—16 PIN AMP #206036-1 CONNECTOR

Pin Signal Parameters
1 Chamber Interlock Out To close Chamber Interlock connect
pin 1 to pin 2, R<2Ω
2 Chamber Interlock In To close Chamber Interlock connect
pin 2 to pin 1, R<2Ω
3 X-Ray ON Lamp Out 120Vac @ 3A/250Vac @ 1.5A rated
contacts. Close at X-Ray ON
4 X-Ray ON Lamp In 120Vac @ 3A/250Vac @ 1.5A rated
contacts. Close at X-Ray ON
5 N/C N/C
6 Prime Power Interlock Out To close Power Interlock connect
pin 6, 7 to pin 8, 10, R<2Ω
7 Prime Power Interlock Out  To close Power Interlock connect
pin 6, 7 to pin , R<2Ω
Prime Power Interlock In  To close Power Interlock connect
pin 8, 10 to pin 6, 7, R<2Ω
N/C  N/C
10  Prime Power Interlock In  To close Power Interlock connect
pin 8, 10 to pin 6, 7, R<2Ω
11  +24Vdc Input (+)  +24Vdc Input (+)
12  +24Vdc Input (+)  +24Vdc Input (+)
13  +24Vdc Return (-)  +24Vdc Return (-)
14  +24Vdc Return (-) +24Vdc Return (-)
15  X-Ray On Indicator Out  24Vdc @ 3A rated contacts. Close at X-Ray On
16  X-Ray On Indicator In  24Vdc @ 3A rated contacts. Close at X-Ray On



J2 RS-232 DIGITAL INTERFACE—9 PIN AMP #788903-1 CONNECTOR

Pin Signal Parameters
1 DCD Data Carrier Detect
2 RD Received Data
3 TD Transmitted Data
4 DTR Data Terminal Ready
5 SGNO Signal Ground
6 DSR Data Set Ready
7 RTS Request to send
8 CTS Clear to Send
9 RI Ring Indicator



SPOT TABLE

PARAMETER NARROW BEAM WIDE BEAM
Operating Voltage Range 45-130kV 50-130kV
Maximum Power 65W, 130kV 65W, 130kV
Maximum Beam Current 0.500mA 0.500mA
Spot Size 4 Watt ≤ 7μ, 45-130kV ≤ 8μ, 50-130kV
Spot Size 8 Watt ≤ 10μ, 45-130kV ≤ 14μ, 50-130kV
Spot Size 16 Watt ≤ 22μ, 45-130kV ≤ 24μ, 50-130kV
Spot Size 32 Watt ≤ 48μ, 70-130kV ≤ 48μ, 70-130kV
Spot Size 40 Watt  ≤ 60μ, 80-130kV  ≤ 60μ, 80-130kV
Spot Size 65 Watt  ≤ 100μ, 130kV  ≤ 100μ, 130kV



How to Order:
Standard (Narrow Beam)PART NO.: μXRB130P65

Wide Beam Option PART NO.: μXRB130P65WB
Wide Beam Option and Extension Tube PART NO.: μXRB130P65WBE

Tables & Diagrams

DIMENSIONS: in.[mm]

NARROW BEAM (Standard)

SIDE VIEW

Narrow Beam Side View

BOTTOM VIEW

Narrow Beam Bottom View

REAR VIEW

Narrow Beam Rear View



FRONT VIEW

Narrow Beam Front View

DIMENSIONS: in.[mm]



WIDE BEAM (WB Option)

SIDE VIEW

Wide Beam Side View

BOTTOM VIEW

Wide Beam Bottom View

REAR VIEW

Wide Beam Rear View

FRONT VIEW

Wide Beam Front View



DIMENSIONS: in.[mm]

WIDE BEAM (WB Option) and EXTENSION TUBE (ET Option)

Wide Beam Extension Tube

BOTTOM VIEW



Wide Beam Extension Tube Bottom View

REAR VIEW

Wide Beam Extension Tube Rear View

FRONT VIEW

Wide Beam Extension Tube Front View
