spx series spx constant potential output excellent stability and regulation power factor corrected ac input circuitry digital interface, ethernet and rs-232 end grounded exposed anode portable, repeatable, accurate 100% duty cycle unparalleled resolution imaging liquid or air cooled models penetration of up to 76mm of fe (300kv unit) 160kv, 200kv, 300kv portable industrial ndt x-ray imaging system spellman’s spx series are perfectly suited for today’s demanding ndt inspection requirements. spx units are rugged, yet easy to transport and economical to maintain. they can be line or portable generator powered automatically adapting to standard input voltages to permit all day inspection under extreme conditions virtually anywhere. the end grounded x-ray tubes have a focal spot size of 1.5mm sq. and the exposed anode allows for easy and flexible positioning of the tube head assembly. tube ports use a low-absorption beryllium window that allows the radiographer to utilize the full spectrum of x-ray energy. the high radiation output of the spx systems allow for lower kv per exposure, shorter exposure times and increased film contrast for superior radiographic imaging. the spx microprocessor-driven control unit provides automatic warm-up and comprehensive self-diagnostic circuitry. memory to store and recall exposure techniques is standard and the last set of exposure parameters is retained before powering down. the spx is adjustable in 1kv and 0.1ma increments. exposure duration can be set from 1 second to 99 min 59 seconds in 1 second increments. there are three models to choose from: 160kv, 200kv and 300kv. (ref. 128121-001 rev. k) input line requirements:automatically adapts to input line voltage200-250vac, 50/60hz, 10 amperes maximummay also be portable-generator powered x-ray outputspx160: 20 to 160kv, 0.5ma to 5.0ma (800 watts max.)spx200: 10 to 200kv, 0.5ma to 10.0ma (900 watts max.)spx300: 10 to 300kv, 0.5ma to 10.0ma (900 watts max.)constant potential, end-grounded anode, air or liquid cooled versions available x-ray tube window:spx160: beryllium 0.8mm (directional)nickel 0.6mm (panoramic)spx200: beryllium 1.0mmspx300: beryllium 1.0mm radiation coverage:spx160: 40° directional or 360° panoramic tube availablespx200: 40° directional or 360° panoramic tube availablespx300: 40° x 60° radiation output:spx160: 14r/min at 50cm filtered with 0.5 inches (12.7mm)aluminum at 160kv, 5maspx200: 21r/min at 50cm filtered with 0.5 inches (12.7mm)aluminum at 200kv, 4.5maspx300: 30r/min at 50cm filtered with 0.5 inches (12.7mm)aluminum at 300kv, 3ma radiation leakage:less than 2.0 roentgens per hour at 1 meter fromthe x-ray tube target. effective focal spot:spx160:standard: 0.03 x 0.04 in. (0.7 x 1.0mm) en125430.02 in. sq. (0.5mm sq.) iec60336panoramic: this tube has a flat target (0 degree) and therefore it is without dimension along the tube axis (other than panoramic tubes with conical targets). the true focal spot on the target can only be estimated by taking two focal spot film exposures in the main beam 90 degrees apart from each other. due to this no focal spot is inferred. spx200:standard: 3mm x 3mm (0.12in x 0.12in) en125430.060 in. sq. (1.5mm sq.) iec60336panoramic: 0.4mm x 4mm (0.016in x 0.16in) en12543 spx300:standard: 3mm x 3mm (0.12in x 0.12in) en12543 ambient temp:100% duty cycle @ 120°f (49°c) duty cycle:100% - liquid or air cooled storage temp:-30°f to 160°f (-35°c to 71°c) anode cooling:liquid coolant solution closed loop between x-ray tube anode and cooling unit, or fan forced air cooling. liquid cooling unit dimensions:please reference dimension drawings liquid cooling unit weight:54lbs. (15.4kg) approx. tube head dimensions:please reference dimension drawings tube head weight:spx160:liquid cooled: 29lbs. (13.15kg)air cooled: 33lbs. (14.97kg)panoramic: 29lbs. (13.15kg)spx200:liquid cooled: 37lbs. (16.78kg)air cooled: 41lbs. (18.60kg)panoramic: 37lbs. (16.78kg)spx300:liquid cooled: 98lbs. (44.5kg)air cooled: 105lbs. (47.61kg) x-ray control unit:digital microcomputer based with local control, rs-232 and ethernet x-ray control unit dimensions:please reference dimension drawings x-ray control unit weight:26lbs. (11.8kg) approx. safety devices:tubehead pressure relief valvetubehead thermal cut-outtubehead pressure gaugetubehead low pressure cut-out @ 25psi (1.72 bar)coolant flow sensor (liquid cooled only)control unit safety keyswitchmicrocomputer-based self diagnosticscontinuous exposure parameter display standard accessories:operation manualtubehead carrying casetubehead pressure gaugetubehead cable- 100’ with strain reliefextra key (1) for control unit safety lockpower cable - 25’ with strain reliefcoolant hose - twin, 50’ with self-sealing terminations (liquid cooled only)cooler power cable   spx160 model selection table model numberdescription spx160acdbg air cooled, 40° directional beam, glass insert spx160lcdbg liquid cooled, 40° directional beam, glass insert spx160lcpang liquid cooled, panoramic beam, glass insert spx200 model selection table model numberdescription spx200acdbc air cooled, 40° directional beam, metal ceramic insert spx200cpanc liquid cooled, panoramic beam, metal ceramic insert spx200lcdbc liquid cooled, 40° directional beam, metal ceramic insert spx300 model selection table model numberdescription spx300lcdbc liquid cooled, 40° directional beam, metal ceramic insert spx300acdbc air cooled, 40° directional beam, metal ceramic insert spx options model numberdescription 3-000-0754 spx160/200 tubehead stand 3-000-0756 spx300 tubehead stand 3-000-0792 laser pointer for liquid cooled tube k935 spx160 laser pointer for air cooled tube k936 spx200/300 laser pointer for air cooled tube k937 spx200 laser pointer for liquid cooled tube k938 spx300 laser pointer for liquid cooled tube typical applications: aerospace manufacturing defense aviation energy security systems ndt applications

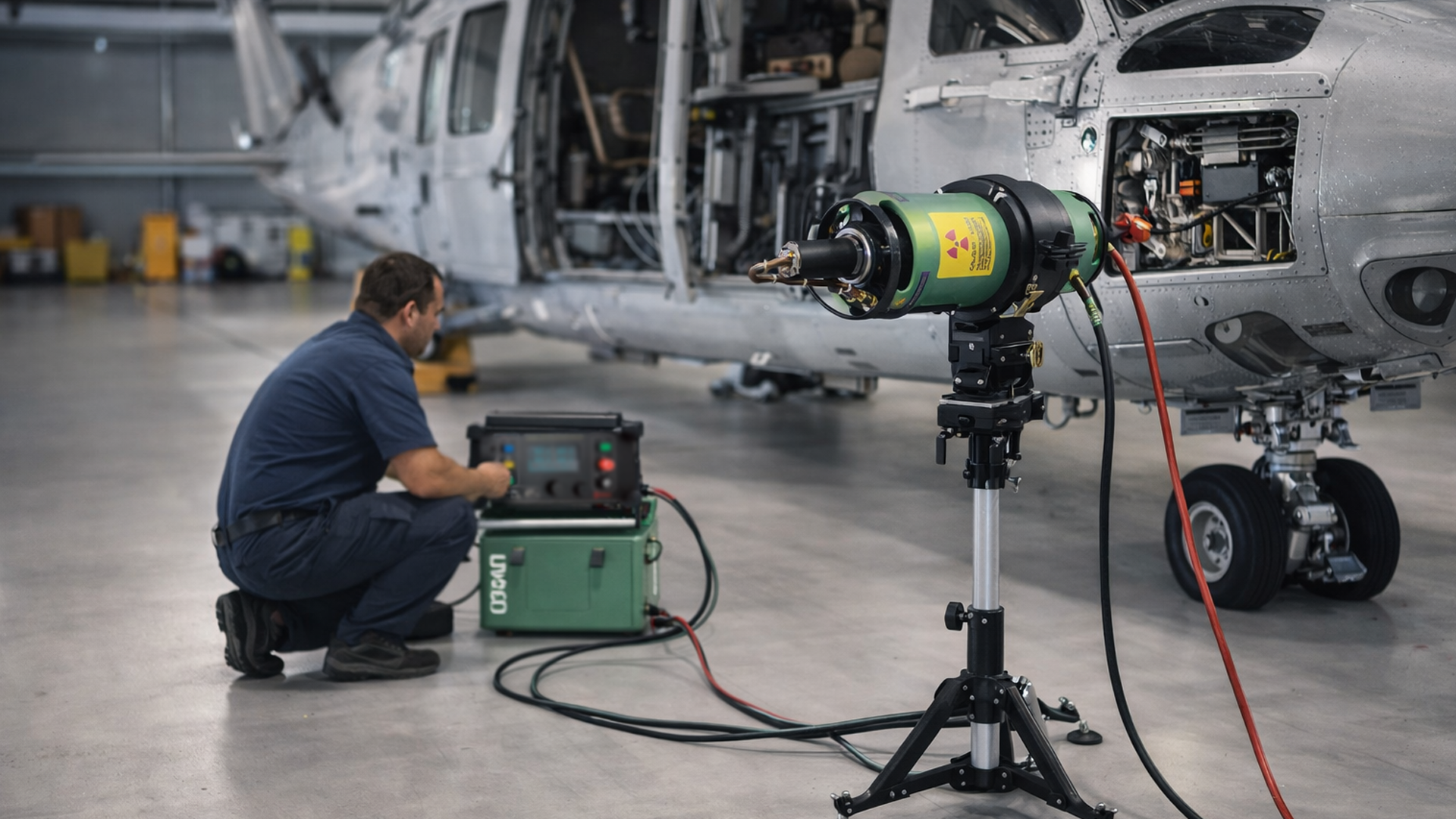

spx 1620 series spx 1620 heavy-duty aluminum construction quick set up allows 3-axis positioning of tubehead provides rigid support for optimal image quality spellman’s lpx series are perfectly suited for today’s demanding ndt inspection requirements. lpx units are rugged, easy to transport and the optional lpx1620 tubehead stand allows for quick set up and provides rigid support for optimal image quality. the tubehead stand incorporates telescoping legs, a hand wheel-driven variable height adjustment and lockable hand wheel controlling the tubehead tilt and horizontal rotation. the tubehead cradle is cushioned for secure mounting and vibration damping. a bubble-type indicator is included for quick and easy leveling of the tubehead. the lpx1620 tubehead stand is compatable with all lpx160, lpx200 and lpx300 tubehead assemblies horizontal rotation:360° tilt:-45° to +90° dimensions:footprint of legs:43˝ (109cm) min., 70.5˝ (179cm) max.floor to center line of tubehead ring:45.5˝ (115cm) min., 83.5˝ (212cm) max. weight:35lbs. (16kg)set-upextend tripod legs outwardloosen height lock knob and raise gearhead mount approx. 3 inchesplace gearhead on tripod shaft. align set screw hole in shaft with hole in gearhead mount. using supplied hex key, tighten set screw to engage gear head mount.mount tubehead in cradle. open knurled latch and outer ring to remove cradle assembly. release the two hook latches on the cradle to open it. fit cradle over tubehead making sure any cooling manifolds are positioned between cushioning pads. latch the hook latches securely.mount cradle in the gear head outer ring. close and latch the knurled knob locking mechanism.use the height, tilt, and rotation controls to position the x-ray tubehead as needed. lock all adjustments before making x-ray exposures. lpx1620 model selection table part numberdescription 3-000-0754 tubehead stand for lpx160 and lpx200 3-000-0756 tubehead stand for lpx300

spx laser pointer series spx laser pointer exclusive to lorad lpx systems quick set up accurate up to 75 feet away adaptors for most lpx tubeheads laser pointer other imaging systems may produce inconsistent results and require repeat exposures. spellman’s laser pointer, exclusive to lorad’s lpx systems, locates the centerline of the x-ray beam for unmatched accuracy and efficiency. the laser pointer shows precisely where the central x-ray beam will contact the test area by projecting a highly visible reference beam from the x-ray tube head to surfaces up to 75 feet away. the beam is activated by a push button and automatically shuts off after 30 seconds. the laser pointer is lightweight and powered by three (3) aaa batteries. the laser pointer can be used with lorad’s end-grounded exposed anode tube heads and also with air cooled tube heads with the addition of the air cooled adaptor. the lpx laser pointer is compatable with most lpx160, lpx200 and lpx300 tubehead assemblies. (ref. 128099-001 rev. c) wavelength:670nm typical output power:4.2mw +/-5% laser class:class iiia conforming (cdrh 21cfr) class 3r (iec 60825 1) operating current:@ 5vdc 45ma typical, 125ma max battery lifetime:20 hours typical (alkaline aaa cells) operating temp:10°c to +40°c operating time w/o restart:30 seconds dimensions:1.75˝ h x 2.72˝ w x 2.72˝ d (4.44cm x 6.90cm x 6.90cm)
