(Ref. 128082-001 REV. M)
Tube Type: Glass tube, Tungsten target, Be filter
Focal Spot: 0.8mm x 0.8mm.
Beam Filter: 0.016. thick 6061 Al.

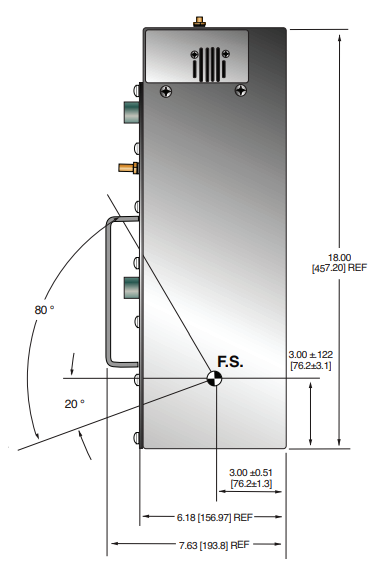

Beam Geometry: Asymmetrical fan 80° x 10° +/-2°
100-240Vac, 50/60Hz, 5A maximum +/-10%
X-Ray Tube Voltage:
Nominal X-Ray tube voltage is adjustable between 80kV to 160kV
X-Ray Tube Current:
0.1mA to 1.2mA, 192W maximum over specified
tube voltage range
X-Ray Tube Power:
192W, maximum continuous
Line: ±0.1% for a ±10% input line change of nominal input line voltage Load: ±0.1% for a 0.1mA to 1.2mA load change
Voltage measured across the X-Ray tube is within ±2% of the programmed value
Ramp time shall be <200ms from 10% to 90% of rated output
Within 5% of rated voltage in <10ms
1% p p of rated voltage @ =1kHz
Line: ±0.1% for a ±10% input line change of nominal input line voltage
Load: 0.5% @ 80-160kV, 0.1mA to 1.2mA
Current measured through the X-Ray tube is within ±2% of the programmed value
<200ms from 10% to 90% of rated output
4 arcs in 10 seconds with a 200ms quench = Shutdown
Internal high frequency AC filament drive with closed loop filament emission control
0 to 10Vdc ground referenced signals
A demo GUI for engineering evaluations will be provided for the RS-232 digital interface upon request.
A hardware interlock function is provided
0°C to +40°C
-40°C to +70°C
10% to 95% relative humidity, non-condensing
Natural convection augmented by customer provided 250cfm cooling fans for 192W operatio

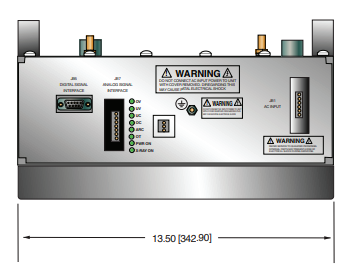

Input Line Connector:
6 pin Molex 26-60-4060
Analog Interface Connector:
7 pin Molex 26-60-5070
Digital Interface Connector:
9 pin D connector, female
32 ground stud provided on chassis

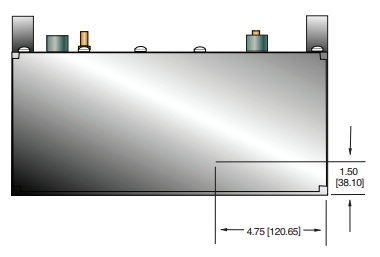

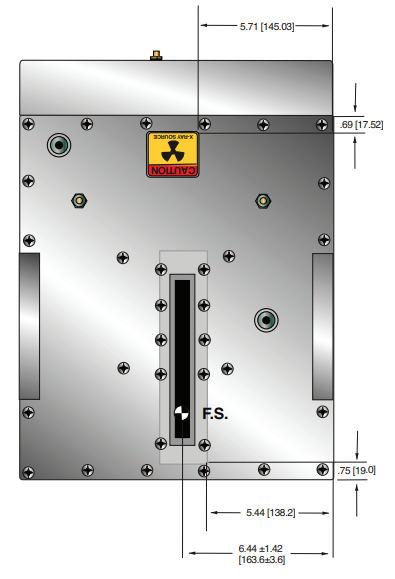

18" X 13.5" X 7.63" (458mm X 343mm X 193.80mm)
Can be mounted in any orientation.
Not to be greater than 0.5mR/hr at 5cm outside the external surface.
Compliant to EEC EMC Directive (External EMC filter required). Compliant to EEC Low Voltage Directive. UL/CUL recognized file E235530.
