MCP High Voltage Power Supply DC DC Converter


  • Floating, Programmable 3kV Output
  • Isolated to 15kV
  • Well Regulated, Low Ripple
  • Compact Shielded Metal Enclosure

*Note: All specifications are subject to change without notice. Please consult the English PDF version of this datasheet for the most up-to-date revision.

CE ROHS Marking

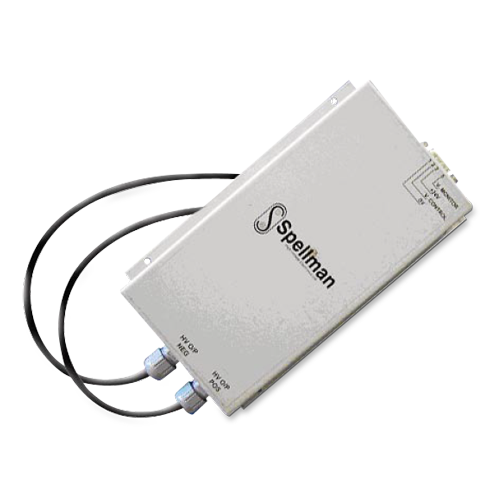

MCP Model | High Voltage DC DC Converter

Spellman’s MCP Module is a well-regulated, high perfor­mance and high voltage DC DC converter featuring a floating 3kV output, isolated to 16kV. The MCP low output ripple specification makes it ideal for use with detectors in Mass Spectrometry applications like: Electron Multipliers (EM’s), Microchannel Plates Detectors (MCP’s) and Channel Electron Multipliers.

This +3kV @ 330uA high voltage DC DC converter module is packaged in a shielded metal enclosure. The unit has remote voltage programming and a voltage monitor, and features low injected ripple when used with biasing supplies. The MCP module is easily customized to meet OEM requirements with improved ripple performance, improved stability and configurable output lead terminations as required.

Typical high voltage power DC DC converter applications:

  • Mass Spectrometry Detectors
  • Microchannel Plates
  • Electron Multipliers
  • Channel Electron Multipliers


(Ref. 128027-001 REV. L)

Input Voltage:

+24Vdc, ±0.5 volts

Input Current:

600 mA maximum

Output Voltage:

+100V to +3kV, continuously variable over the entire output range

Output Current:

330uA maximum



Isolation Voltage:

Up to 15kV total to ground (resistance to ground 600M on each output)

Line Regulation:

≤ 0.01% for input voltage change of 1V

Load Regulation:

≤ 0.1% for a no load to full load change

Voltage Programming:

0 to 10 volt corresponds to 0 to 100% of rated output voltage

Voltage Monitor:

0 to 5 volts corresponds to 0 to 100% of rated output voltage


±1% from 10% to 100% of output.

Below 10% accuracy spec is not guaranteed


≤ 0.1% Volts p-p, 0.1Hz to 1MHz


≤ 1000 ppm/hour at constant operating conditions after a 1 hour warm up

Temperature Coefficient:

≤ 300ppm per degree C


Temperature Range:

Operating: 0°C to 40°C

Storage: -40°C to 85°C


10% to 90%, non-condensing.


Convection cooled


1.49. H X 4.09. W X 6.73. D (38mm X 104mm X 171mm)


2.2 pounds (1kg)

Interface/Power Connector:

9 pin male D connector

High Voltage Output Cable:

HV positive: 29.5” (750mm) fly wire, URM76 coaxial HV cable

HV negative: 29.5” (750mm) fly wire, URM76 coaxial HV cable

Regulatory Approvals:

Compliant to EEC EMC Directive. Compliant to EEC Low Voltage Directive.2006/95/EC, The Low Voltage Directive.


JB1 Signal Signal Parameters
1 Signal Ground Signal Ground
2 Voltage Programming Input 0-10Vdc = 0-100% of Rated Output
3 +24V Input +24V Input
4 +24V Input +24V Input
5 Voltage Monitor 0-5Vdc=0-100% of Rated Output
6 Power Ground Power Ground
7 Power Ground Power Ground
8 Power Ground Power Ground
9 Power Ground Power Ground

Tables & Diagrams



MCP High Voltage Power DC DC Convertor (Image 1)


MCP High Voltage Power DC DC Convertor (Image 2)


MCP High Voltage Power DC DC Convertor (Image 3)
