FUENTE DE ALIMENTACIÓN DE ESPECTROMETRIA DE MASAS

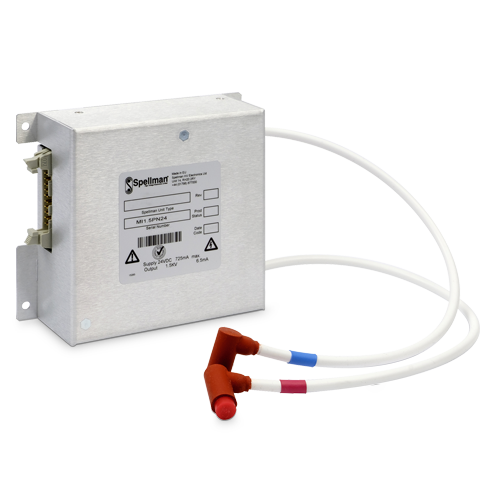

El MI1.5PN24 de Spellman es un convertidor DC-CC bien regulado y de alto rendimiento con una salida flotante de 1.5 kV a 6.5 mA, tiene un rango operativo de 300V-1500V. La salida está aislada; esto permite la conexión a cargas de +Ve, -Ve o polaridad conmutable y para que las corrientes de pulso estén contenidas dentro de los trazados prescritos, reduciendo ruido e interferencia. La baja especificación de rizo de salida de la ML1.5PN24 la hace ideal para su uso con pulsadores en aplicaciones de espectrometría de masas.

Especificaciones

^{(Ref. 128154-001 REV.A)}

Input Voltage:

+24Vdc, ±10%. Protected against reverse connection

Input Current:

725mA maximum at 1500V @ 6.5mA

Output Voltage:

300V to 1.5kV, continuously variable over entire output range

Polarity:

Positive or negative, isolated to 1.5kV

Load Current:

6.5mA, maximum

Power:

9.75 watts, maximum

Regulation:

Line: <0.5% for line change of ±10%

Load: <0.1% for zero to full load

Stability:

Better than 300ppm/hour after 1 hour warm up. 100ppm/hour after 2 hour warm up at constant operating conditions. Typically, 50ppm/hour after 1 hour and 15ppm/hour after 2 hours.

Temperature Coefficient:

<100ppm/°C, typically 25ppm/°C

Ripple:

<75mV peak to peak at full load when either end is grounded.

Output Current Limit:

The module will have an output current limit of 9mA. The module is capable of withstanding an indefinite short circuit or overload on its output and will recover automatically once the short circuit is removed.

Supply Voltage Dynamic Rejection:

< than 20mV for an input step of 1 volt (within the range of +24Vdc, +10%/-2%)

Setting Time:

500 milliseconds maximum under all conditions.

Output Capacitance:

>400nF - Connected directly between POSITIVE to NEGATIVE output nodes

Environmental:

Temperature Range:

Operating: +15°C to +50°C

Storage: -40°C to 70°C

Humidity: 5% to 95% RH @ 40°C non-condensing

Cooling:

Convection cooled

Interface Connector:

20 pin IDC male connector

High Voltage Output Connectors:

Two Varex CA166 (Connectronics SCID compatible) right angle connectors, 10 inches (254mm) long. The +Ve cable will have a RED band and “POS” printed on the cable. The -Ve cable will have a BLUE band and “NEG” printed on the cable. High voltage outputs are floating.

Star Ground Network:

+24Vdc Return is central; case, analog input ground and digital ground are returned through a 100Ω resistor in parallel with a 0.001uF capacitor to the +24Vdc Return.

Dimensions:

4.53”L x 3.74”W x 1.54”D (115mm X 95mm X 39.2mm)

Weight:

0.66lbs. (0.3kg)

Regulatory Approvals:

The unit is CE marked. The unit has been designed to meet the requirements of EN61010, UL1950 and CSA 22.2 No. 950.

EMC:

As the unit is a component it will not be tested as a stand alone unit to meet the EMC directive. The user will need to follow sensible EMC precautions in using the unit.

INTERFACE CONNECTOR — 20 PIN IDC MALE CONNECTOR

*At voltage programming voltages less than 2 volts, parameters in this specification may not be met.

Tablas y Diagramas

DIMENSIONS: in.[mm]

TOP VIEW

SIDE VIEW

FRONT VIEW
