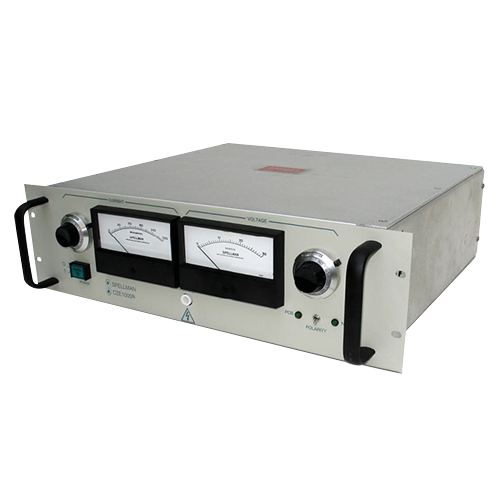

SpellmanHV Rack Mounted CZE1000R Auto-Reversing High Voltage Power Supply


  • Ideal for Electrospinning and Lab Use
  • 0-30kV. 0-300µA; Local or Remote Programming
  • Polarity Reversible Upon Command in <1 Sec at No Load
  • Low Stored Energy, Current Limited Output

*Note: All specifications are subject to change without notice. Please consult the English PDF version of this datasheet for the most up-to-date revision.

two year warranty CE Marking

Auto-Reversing High Voltage Power Supply

Spellman’s CZE1000R is a full feature rack mountable high voltage power supply ideal for laboratory usage. It’s designed to meet the needs of applications requiring a hot switched reversible output voltage. The output polarity can be quickly and safely reversed via a front panel switch.

Both the output voltage and current are fully adjustable from 0 to 30kV and 0 to 300uA via front panel ten turn locking counting dials. Remote control operation is done by 0 to +10Vdc programming signals; either user generat­ed or using the provided +10 Vdc reference and external potentiometers.

Front panel voltage and current meters provide local monitoring. Voltage and current test points are provided such that 0 to 10Vdc corresponds to 0 to 100% rated output. A two position, normally closed, external interlock is provided for protection of external high voltage accessi­ble areas. If the interlock is opened the high voltage will shut off and fall to zero in less than one second and not be able to be re-energized until the interlock is closed.

Excellent load and line regulation specifications along with outstanding stability and low ripple of the CZE1000R assure a stable high voltage output for consistent process results.

Typical applications:

  • Electrospinning
  • Mass Spectrometry
  • Capillary Electrophoresis
  • Electrostatic Research


(Ref. 128075-001 REV. H)

Input Voltage:

115Vac, ±10%, 50/60Hz

Input Current:

Less than 1 amp


75% typical

Output Voltage:

0 to 30kV


Auto reversible via front panel switch

Output Current:

0 to 300µA


9 watts, maximum

Line Regulation:

0.01% for a 10% input voltage change

Load Regulation:

0.01% for a full load change


0.1% Vp-p


0.02% per 8 hours (after 1/2 hr warmup)

NL Time Constant:


Stored Energy:

0.2 Joules at 30kV

Temperature Coefficient:


Operating Temperature:

0°C to 40°C

Storage Temperature:

-40°C to 85°C


10% to 85% RH, non condensing


Convection cooled


5.25”H x 19”W x 17”D (13.3cm x 48.3cm x 43.2cm).


22lbs. (10kg)

Interface Connector:

14 pin terminal block

AC Input Connector:

IEC320 connector with 6’ (1.83m) cord

HV Output Connector:

Detachable 36. (0.91m) cable provided

Regulatory Approvals:

Designed to meet EEC EMC Directive. Designed to meet EEC Low Voltage Directive.


220 220Vac Input VoltageRPO Rear Panel HV Output


Pin Signal Parameters
1 +10Vdc Reference Output +10Vdc, 4mA maximum
2 Internal Voltage Control Front Panel Program Voltage (programming potentiometer)
3 Voltage Program Input 0 to 10Vdc = 0 to 100% rated output, Zin =10MΩ
4 Internal Current Control Front Panel Current Control
(programming potentiometer)
5 Current Program Input 0 to 10Vdc = 0 to 100% rated output,
Zin =10MΩ
6 Signal Common Ground
7 Voltage Test Point 0 to 10Vdc = 0 to 100% rated output, Zout =10kΩ, 1%
8 Current Test Point 0 to 10Vdc = 0 to 100% rated output, Zout =10kΩ, 1%
9 External Interlock Out 32Vdc @ 2 amps, max, (connect to pin 10 through safety switch)
10 External Interlock In Return for interlock (connect to pin 9 through safety switch)
11 +10Vdc Reference Output +10Vdc, 4mA maximum
12 Enable Open or ground = HV OFF, >3.4Vdc (up to 15Vdc) = HV ON
13 Spare No Connection
14 Spare No Connection


The unit is shipped with the following pins jumpered for front panel
operation: 2-3, 4-5, 9-10, 11-12 It is strongly recommended to
remove the 9-10 jumper and use a high voltage safety interlock

High Voltage Cable:

A mating high voltage connecter is provide with the unit. Have a
spare on hand or replace broken/lost mating high voltage cables
by ordering Spellman part number 105719-034
