CCM1KW Series

Compact & Lightweight Package
Factor Corrected Input
Cost Modular OEM Platform
Resonant Soft Switching Inverter Topology
UL/CUL Recognized; RoHS Compliant

Certifications & Compliance

1kW Capacitor Charging Module

Spellman’s CCM1KW capacitor charging module is designed to provide up to 1000 Joules per second at an output voltage up to 4000 Volts. The power factor corrected AC input, small package size and both a comprehensive and minimal analog interface simplifies integrating the CCM1KW into your OEM system design. Available in either positive or negative polarity, the CCM1KW is fully arc, open and short circuit protected. Units can be operated in parallel for applications requiring higher power (see manual for details).

사양
모델

사양

^{(Ref. 128103-001 REV. K)}

Input Voltage:
90-264 Vac, 50/60 Hertz, power factor corrected input ≥0.98
Input Current:
14 Amps worst case, 1000 Joules per second
7 Amps worst case, 500 Joules per second
Efficiency:
>85%
Output Power:
1000 Joules per second, 500 Joules per second
Output Voltage:
0-1kV, 0-2kV and 0-4kV version available
Output Polarity:
Positive or negative, specify at time of order
Stored Energy:
Less than 0.2 Joules
Pulse to Pulse Repeatability:
±0.2% up to 1kHz
Temperature Coefficient:
≤ 100ppm per degree C
Fault Diagnostic System:
Over Temperature and Over Voltage Over Voltage Fault is latched requiring AC power recycle to clear. Over Temperature Fault is latched but can be cleared via inhibit/fault reset line.
Environmental:
Temperature Range:
Operating: 0°C to 40°C
Storage: -40°C to 85°C
Humidity:
10% to 90% RH, non-condensing
Cooling:
Forced air
Input Line Connector:

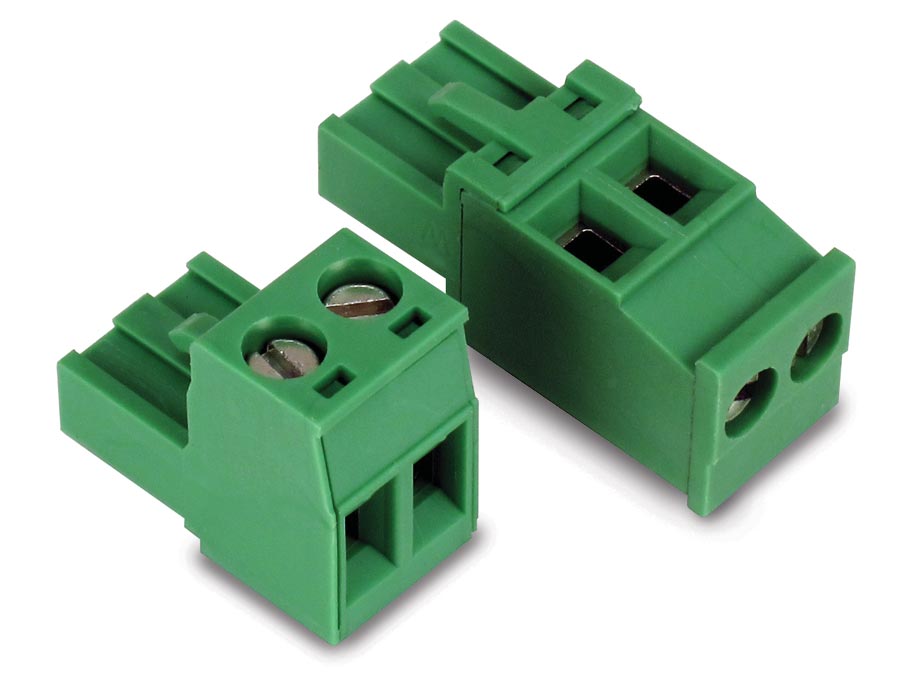

2 position Phoenix MSTB connector, straight and right angle mating connector provided
HV Output Connector:
Standard: Kings/Winchester Electronics SHV 1707-1
Optional: Amphenol MHV UG-931/U
Interface-A Connector:
15 pin D, female
Interface-B Connector:
4 pin male Molex 705530038
Ground Stud:
10-32, nut supplied
Dimensions:
3. H X 6. W X 9. D (76.2mm x 152.4mm x 228.6mm)
Mounting:
M4 screw. Max. depth is 0.188. (4.78mm)
Weight:
6.9lb. (3.13kgs)
Regulatory Approvals:
Compliant to 60601-1-1. Compliant to 60601-1-2. UL/CULrecognized file E242584. RoHS compliant.

모델

CCM1KW SELECTION TABLE kV JOULES/SECOND

kV	Joules/Second	Model
1	500	CCM1*500
2	500	CCM2*500
4	500	CCM4*500
1	1000	CCM1*1000
2	1000	CCM2*1000
4	1000	CCM4*1000

Typical applications:

UV light sources for curing and sterilization
Industrial and medical laser applications
