SpellmanHV uX Series 50-75W Industrial X-Ray Generators

uX Series

uX and uXHP GUI Demo Video

  • 50kV with 50 or 75 Watt Max.
  • 65kV with 65 Watt Max.
  • Adjustable Isolated Filament Supply
  • Local and Remote Emission Control
  • RS-232, Ethernet, & USB Standard

*Note: All specifications are subject to change without notice. Please consult the English PDF version of this datasheet for the most up-to-date revision.

Ask about our subsystem capabilities

Ask about our X-Ray subsystem capabilities

RoHs Compliant logo CE RU Marking

50-75W Industrial X-Ray Generators

The uX Series is the result of Spellman’s exceptional high voltage packaging and surface mount fabrication techniques coupled with proprietary encapsulation technology producing this ultra-compact X-Ray generator module. The uX powers grounded cathode X-Ray tubes from a variety of well-known manufacturers, featuring a 0 to 50kV/65kV high voltage output @ 2mA limited to 50, 65 or 75 Watts. The uX uses closed loop filament control circuitry providing highly regulated beam current. The low noise dc filament supply operates between 0.3 and 3.5 amps. Offering tight regulation, high stability and low ripple, the uX provides users local and remote analog control to set beam voltage, emission current and filament current limit. USB, RS-232 and Ethernet interface is standard.

Typical applications:

The uX is designed to run a variety of tubes from industry leading manufacturers. Contact Spellman sales to determine if the X-Ray tube of interest can be powered by the uX.

Options

XCC XRM Compatible HV Cable (50kV only)
5VPM 0 to 5 Volt Programming and Monitor Scaling
GB Grid Bias
GF Grounded Filament
5302 Mammoflex HV cable for uX
2001 Mammoflex HV cable for uX w/XCC option

uX and uXHP Graphical User Interface Demo Video:



Specifications

(Ref. 128108-001 REV. L)

Input:

+24Vdc ±10%, 5.0A maximum for either 50 Watts or 75 Watts.

+24Vdc ±1V, 5.0A maximum for 65kV/65W units.

Efficiency:

75%, typical

Output:

0 to 50kV at 0 to 2mA, limited to a maximum of 50 watts
or 75 Watts. 0-65kV at 2mA limited to 65 Watts.

Voltage Control:

Local: Internal multi-turn potentiometer to set voltage from 0 to full output voltage.

Remote: 0 to +10Vdc proportional from 0 to full output voltage. Accuracy: ±1%. ZIN: 10Mohm.

Emission Control:

Local: Internal potentiometer to set beam current between 0 and full output current.

Remote: 0 to +10Vdc proportional from 0 to full output current. Accuracy: ±1%. ZIN: 10Mohm. Filament limit and filament preheat control capability is also provided.

DC Filament Supply:

Isolated filament power supply generates emission current feedback signal for accurate low X-Ray tube current performance.

Current: 3.5A, adjustable limit

Voltage: 5.0 volt limit

Environmental:

Operational: 0°C to +50°C

Storage: -40°C to +85°C

Humidity: 0% to 90%, non-condensing

Temperature Coefficient:

0.01% per °C, voltage and current.

Stability:

0.05% per 8 hours after 1/2 hour warm-up.

Voltage and Current Monitors:

0 to +10Vdc proportional from 0 to rated output. Accuracy ±1%.

Redundant Voltage Monitor:

A redundant high voltage feedback divider with proportional 0 to +10Vdc = 0 to 100% output voltage signal can be provided on a custom basis.

Dimensions:

50kV Unit: 4.00”H x 2.87”W x 8.00”D (101.6mm x 72.95mm x 202.20mm).

65kV Unit: 4.00”H x 2.87”W x 9.00”D (101.6mm x 72.95mm x 228.60mm).

XCC Option: 4.00”H x 2.87”W x 9.00”D (101.6mm x 72.95mm x 228.60mm).

Weight:

4.5 lbs. (2.1kg) typical

Regulatory Approvals:

Compliant to EEC EMC Directive. Compliant to EEC Low Voltage Directive. RoHS Compliant. UL/CUL recognized, File E227588


Digital Interface

The uX features a standard USB, RS-232 and Ethernet digital interface. Utilizing these standard digital interfaces can dramatically simplify power supply interfacing requirements saving the user both time and money, while enhancing functionality and overall capabiity. Spellman provides a GUI with the uX that allows the customer to both customize operational features of the uX while also providing basic power supply operational features. Details of the uX’s digital interface capability are described in detail in the uX manual.

Digital Interface Connector

Closeup showing digital interface connectors



Main Control Screen

Main Control Screen

Communication Screen

Communication Screen

Filament Status Screen

Filament Status Screen



Grid Bias Option (GB):

Spellman’s Grid Bias Option for the uX Series is specifically designed for popular commercially available grid bias X-Ray tubes. The Grid Bias voltage is developed via the use of a separate integrated high frequency switching circuit, providing maximum flexibility and control. The Grid Bias output is a voltage regulated, current compliant topology ideally suited for Wehnelt electrode applications. Arc and short circuit protection of the Grid Bias output prevents any damage due to transient events or installation errors.



Tracking Mode Operation

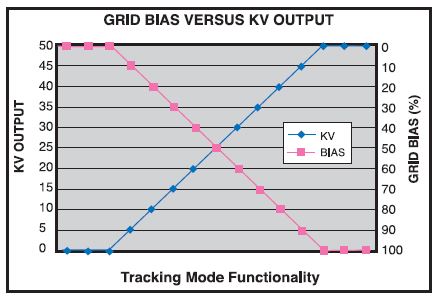

Functioning in tracking mode the voltage monitor (0-10Vdc = 0 to 50kV) of the main high voltage output is internally connected to the Grid Bias programming input (0-10Vdc = 0 to -300Vdc of Grid Bias). Connected in this manner the Grid Bias output will track in a linearly proportional fashion the setting of the main kV output.

A multiturn potentiometer limits the maximum magnitude of Grid Bias output applied to the X-Ray tube, providing unparalleled flexibility.

The output of the Grid Bias option is provided via an auxiliary two position Phoenix Contact terminal block, the mating connecter is provided.

Grid Bias

Grid Bias Specifications

Output Voltage: 0 to -300Vdc
Output Current: 0.25mA, maximum
Load Regulation: 1% of output voltage, no load to full load
Line Regulation: 1% for a ±10% change in input voltage
Ripple: 1% of maximum rated voltage

uX with Grid Bias Option

uX with Grid Bias Option
Note: Note: Units ordered with the GB Option will be provided with the XCC Option for proper high voltage cable compatibility.

POWER INPUT/FILAMENT CONNECTOR 4 PIN PHOENIX CONTACT

Spellman drywell type detachable connector.

Standard: A one meter (39.4”) long polyethylene mating high voltage cable is provided.

5302: A one meter (39.4”) long Mammoflex mating high voltage cable is provided, SHV p/n 201946-007.

2001: A one meter (39.4”) long Mammoflex mating high voltage cable is provided, compatible with the XCC Option SHV p/n 201946-002.

POWER INPUT CONNECTOR

PIN SIGNAL PARAMETER
1 +24V Input +24 volts @ 5A, max.
2 24V Return (Gnd.) Power Ground

FILAMENT CONNECTOR

PIN SIGNAL PARAMETER
1 Filament Out 0.3A to 3.5A, 5 volt max..
2 Filament Return Filament Return

Note: On the standard uX unit, the filament return wire cannot be grounded as this would short circuit the tube return current monitoring to the uX. If grounding of the filament is required, please select the GF (Grounded Filament) option when ordering.

ANALOG INTERFACE CONNECTOR MALE 15 PIN MINI “D”

PIN SIGNAL PARAMETER
1 Monitor Return Signal Ground
2 Voltage Monitor 0-10 volts = 0 to full scale, Zout=1KΩ
3 Current Monitor -10 volts = 0 to full scale, Zout=1KΩ
4 Interlock Output Connect 12V HVON bulb to pin 15 to enable
5 +10 Volt Reference +10 Volts at 1mA, maximum
6 Filament Monitor volt = 1 amp, Zout=1KΩ
7 Voltage Program Input 0-10 volts = 0 to full scale, Zin=10MΩ
8 Local Voltage Program* 0-10 volts, screwdriver adjust
9 Filament Limit Setpoint* 1 volt = 1 amp, screwdriver adjust
10 Current Program Input 0-10 volts = 0 to full scale, Zin=10MΩ
11 Local Current Program* 10 turn pot, screwdriver adjust
12 Not used (+24V Out for Interlock) (Optional Interlock configuration)
13 Not used (Interlock Coil) (Optional Interlock configuration)
14 Filament Preheat Setpoint* 1 volt = 1 amp, screwdriver adjust
15 Interlock Return Interlock Ground

*Denotes 10 turn potentiometer accessable through holes in cover

GRID BIAS CONNECTOR 2 PIN PHOENIX CONTACT

PIN SIGNAL PARAMETER
1 Ground Chassis Ground
2 Grid Bias 0 to -300Vdc

USB DIGITAL INTERFACE— 4 PIN USB “B” CONNECTOR

PIN SIGNAL PARAMETERS
1 VBUS +5 Vdc
2 D- Data -
3 D+ Data +
4 GND Ground

ETHERNET DIGITAL INTERFACE— 8 PIN RJ45 CONNECTOR

PIN SIGNAL SIGNAL PARAMETERS
1 TX+ Transmit Data +
2 TX- Transmit Data -
3 RX+ Receive Data +
4 NC No Connection
5 NC No Connection
6 RX- Receive Data -
7 NC No Connection
8 NC No Connection

RS-232 DIGITAL INTERFACE— 9 PIN FEMALE D CONNECTOR

PIN SIGNAL SIGNAL PARAMETERS
1 TX+ Transmit Data +
2 TX- Transmit Data -
3 RX+ Receive Data +
4 NC No Connection
5 NC No Connection
6 RX- Receive Data -
7 NC No Connection
8 Voltage Monitor 2 0-10V = 0 to full scale, Zout = 1KΩ
Power Supply OK  +15V = OK,
0V = Fault, Sink/Source 3mA max



How to Order:

Sample model number:
50 Watt unit: uX50P50
65 Watt unit: uX65P65
75 Watt unit: uX50P75

Options are added to the model number as follows:
uX50P50/XCC or uX50P75/GB

Tables & Diagrams

DIMENSIONS: in.[mm]

50KV

BACK VIEW

uX 50kV Back view



 SIDE VIEW

 uX 50kV Side View



BOTTOM VIEW

uX 50kV Bottom View



FRONT VIEW

uX 50kV Front View



50KV WITH XCC OPTION



BACK VIEW

uX 50kV Back View XCC Option



SIDE VIEW

 uX 50kV Side View XCC Option



BOTTOM VIEW

uX 50kV Bottom View XCC Option

FRONT VIEW

uX 50kV Front View XCC Option





65KV



BACK VIEW

 uX 65kV Back View



SIDE VIEW

uX 65kV Side View



BOTTOM VIEW

uX 65kV Bottom View

FRONT VIEW

uX 65kV Front View
