PTV 시리즈
- Output Voltages from 1kV to 70kV
- EMI/RFI Input Filter
- Internal 10V Ref and Output Inhibit Via TTL Signal
- OEM Customization Available
*Note: All specifications are subject to change without notice. Please consult the English PDF version of this datasheet for the most up-to-date revision.
200W, 350W 고전압 전원 공급 장치
Spellman’s PTV Series of modular high voltage power supplies deliver up to 350W of continuous power. A quasi-resonant inverter design provides over 80% efficiency with very fast dynamic response. PTV power supplies incorporate extensive standard features in two power output ranges (200W and 350W) with a wide range of output voltages operating to the most exacting specifications.
Typical applications:
- Projection Television
- X-ray Systems
- E-beam Systems
- Capacitor Charging systems
- CPT/CRT Testing
사양
(Rev. 128007-001 REV. P)
Input:
200W: 115Vac ±10% @ 2.5A, 50/60Hz
350W: 115Vac ±10% @ 4.3A, 50/60Hz
200W: 220Vac ±10% @ 1.3A, 50/60Hz
350W: 220Vac ±10% @ 2.2A, 50/60Hz
Optional:
200W: 100Vac ±10% @ 2.8A, 50/60Hz
350W: 100Vac ±10% @ 4.9A, 50/60Hz
Output:
Models from 1kV to 70kV, 200W or 350W. Each model is available in positive or negative polarity outputs.
Voltage Regulation:
Load: 0.01% of output voltage no load to full load.
Line: ±0.01% for a ±10% change in input voltage.
Current Regulation:
Load: 0.01% of output current from 0 to rated voltage. Line: 0.01% of rated current over specified input range.
Efficiency:
80%, typical.
Ripple:
PTV200: 0.1% p-p of output voltage.
PTV350: 0.2% p-p of output voltage.
Switching Frequency:
45-65kHz, nominal
Temperature:
Operating: 0°C to +40°C.
Storage: -40°C to +85°C.
Voltage Temperature Coefficient:
0.01%/°C
Stability (voltage & current):
0.01%/hr after 1/2 hour warm-up.
0.02% per 8 hours.
Cooling:
200W: Convection cooled.
350W: Fan cooled, rear air intake.
Dimensions:
1-40kV: 33/16”H x 103/4”W x 10”D
(8.1cm x 27.3cm x 25.4cm).
50-70kV: 4.187˝ H x 10.875˝ W x 11.812˝ D
(10.65cm x 27.6cm x 35.1cm).
HV Output:
Flying lead 18”±1”(45.7cm) UL listed.
AMP LGHI connector available for 40kV only.
Power Input Connector:
IEC320.
AC Line Voltage Input Cable:
Length: 8’ (2.4m).
Regulatory Approvals:
Compliant to EEC EMC Directive. Compliant to EEC Low Voltage Directive. UL/CUL recognized, File E148969 (up to 5kV only). RoHS compliant.
PTV SELECTION TABLE
| 200 Watt Model PTV200 | 350 Watt Model PTV350 | ||||
|---|---|---|---|---|---|
| kV | mA | Model Number | kV | mA | Model Number |
| 1 | 200 | PTV1*200 | 1 | 350 | PTV1*350 |
| 3 | 70 | PTV3*200 | 3 | 117 | PTV3*350 |
| 5 | 40 | PTV5*200 | 5 | 70 | PTV5*350 |
| 10 | 20 | PTV10*200 | 10 | 35 | PTV10*350 |
| 15 | 14 | PTV15*200 | 15 | 23 | PTV15*350 |
| 20 | 10 | PTV20*200 | 20 | 18 | PTV20*350 |
| 25 | 8 | PTV25*200 | 25 | 14 | PTV25*350 |
| 30 | 7 | PTV30*200 | 30 | 12 | PTV30*350 |
| 40 | 5 | PTV40*200 | 40 | 9 | PTV40*350 |
| 50 | 4 | PTV50*200 | 50 | 7 | PTV50*350 |
| 60 | 3.3 | PTV60*200 | 60 | 5.8 | PTV60*350 |
| 70 | 2.85 | PTV70*200 | 70 | 5.0 | PTV70*350 |
*Specify “P” for positive polarity or “N” for negative polarity.
INTERFACE CONNECTOR 9 PIN
| Pin | Signal | Parameters |
|---|---|---|
| 1 | +10Vdc Reference | +10Vdc @ 1mA, maximum |
| 2 | Current Program | 0 to 10Vdc = 0 to 100% rated output, Zin = 10MΩ |
| 3 | Voltage Monitor | 0 to 10Vdc = 0 to 100% rated output, Zout = 10kΩ |
| 4 | Voltage Program | 0 to 10Vdc = 0 to 100% rated output, Zin = 10MΩ |
| 5 | Common Ground | Power Ground |
| 6 | Current Monitor | 0 to 10Vdc = 0 to 100% rated output, Zout = 10kΩ |
| 7 | Enable/Inhibit | Ground = Inhibit, Open = HV ON |
| 8 | OVP Indicator | Collector w/1kΩ pull up to +5Vdc, transistor on =OVP |
| 9 | Signal Return | Signal Return |
테이블 및 다이어그램
DIMENSIONS: in.[mm]

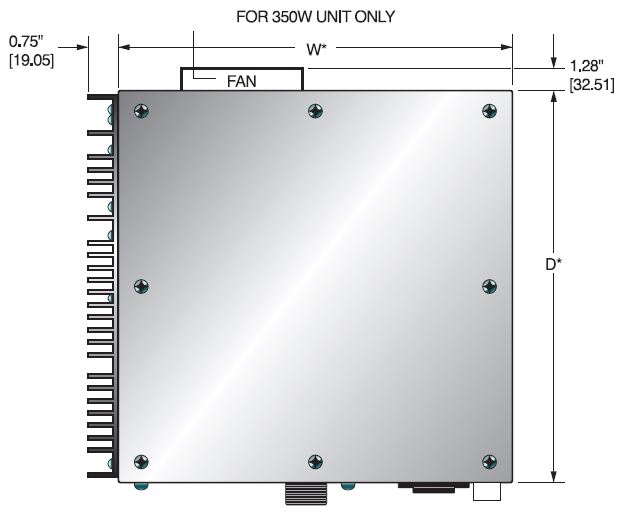

TOP VIEW

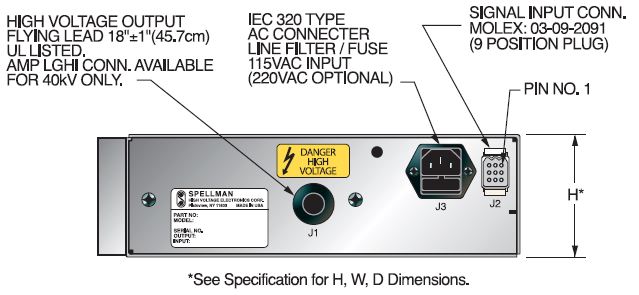

BACK VIEW

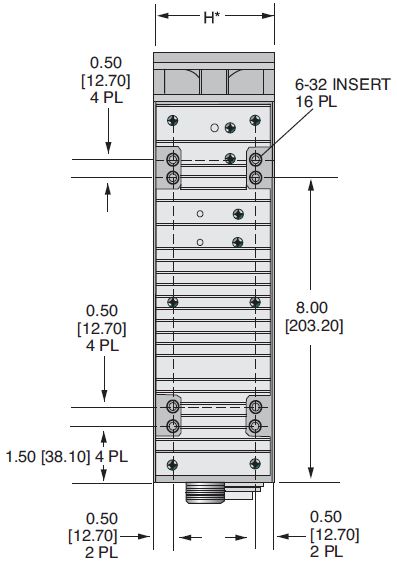

SIDE VIEW
