- ±10kV with 25mS Polarity Reversing Speed
- Integrated Electron Multiplier Supply
- Precision Analog Voltage Control
- High Stability, Low Ripple and Noise
- RoHS Compliant
*Note: All specifications are subject to change without notice. Please consult the English PDF version of this datasheet for the most up-to-date revision.
High Performance High Voltage Power Supply

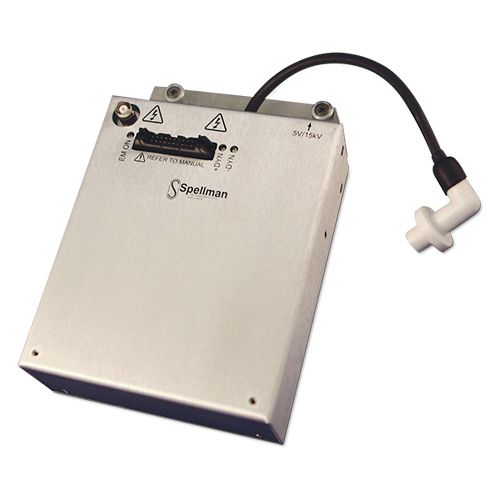

Spellman’s RoHS compliant MX10 Plus is a well-regulated high performance fast reversible dynode supply featuring a 25ms “hot switchable” polarity reversing capability with an integrated -2.3kV electron multiplier supply.
The MX10 Plus’s low ripple specification is typical of the topologies that make Spellman High Voltage your ideal choice for mass spectrometry applications; especially security detection systems, dynodes, sample ionisation as well as capillary electrophoresis and electrostatic printing applications. The MX10 Plus has been designed especially for dynode detector applications.
The MX10 Plus can be easily tailored to an OEM’s requirement, such as improved ripple performance, or different voltage and/or current capabilities.
- Dynode Supply
- Electron Multiplier Supply
(Ref. 128066-001 REV. H)
≤500mA nominal continuous
<2A during reversing
≤ 100ppm per degree C
Operating: 5°C to 45°C
Storage: -35°C to 85°C
10% to 85%, non-condensing
(constant operating conditions) ≤ 300ppm per hour after 1 hour warm up
Arc and Short circuit protected
Compliant to EEC EMC Directive. Compliant to EEC Low Voltage Directive.
Remotely reversible via TTL logic signal
25ms to settle 90% into 50pF load
Line: ≤ 0.02% for a 1.5V input voltage change
≤ 10 Volts p-p
ELECTRON MULTIPLIER SPECIFICATIONS
Line: ≤0.02% for a 1.5V input voltage change
Load: <5V for for no load to 22M Ohms load change
≤ 200mV p-p @ 2.3kV into 22M Ohm load
Output Rise Time:
Output Fall Time:
2.00. H X 5.30. W X 8.00. D (50.8mm X 134.6mm X 203mm)
Approximately 3.3 pounds (1.5kg)
20 pin flat ribbon connector
±10kV: modified Alden #A200 connector
-2.3kV: MHV Kings bulkhead KV-79-15 or similar
MX10 PLUS TERMINAL BLOCK 20 PINS
|7||Output Voltage Control|
|8||Signal Reference Ground|
|11||Output Polarity Control|
|13||-2.3kV Output Monitor|
|17||±10kV Output Monitor|
|How to Order:|
|Standard: PART NO.:MXP10PN15|

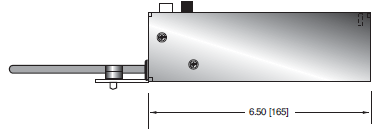

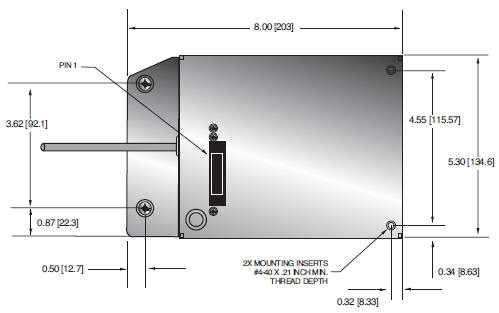

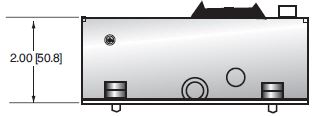

Tables & Diagrams
Note: All specifications are subject to change without notice. Please consult the PDF version of this datasheet for the most up-to-date revision.
