XRB160PN480/2 Monoblock® 工業用X線ジェネレーター

  • 一体型HV電源、フィラメント電源、X線管、ビームポートおよび制御電子回路
  • 小型軽量
  • ユニバーサル入力、力率改善
  • あらゆる物理的方向に取付け可能
  • アナログ制御インターフェイスと標準RS-232デジタルインターフェイス

*注: すべての仕様は予告なく変更される場合があります。最新版についてはこのデータシートの英語PDFをご覧ください。

160kV、480W X線源

Spellman’s XRB160PN480/2 Monoblock® X-Ray source is designed for OEM applications powering its internal X-Ray tube up to 160kV at 480W. Features like universal input, small package size and a standard analog and RS-232 digital interface simplify integrating this Monoblock® into your X-Ray system. Standard models are available with fan shaped beam geometry. Proprietary emission control circuitry provides excellent regulation of X-Ray tube current, along with outstanding stability performance.

用途

X線スキャン:食品検査、液体レベル確認およびセキュリティ

CE Marking

Specifications

(Ref. 128087-001 REV. J)

X-Ray Characteristics:

Tube Type: Glass tube, Tungsten target, Be filter

Focal Spot: 0.8mm x 0.8mm (IEC336)

Beam Filter: 1mm curved window

Beam Geometry: Asymmetrical fan 80° x 10° ±2°

Input Voltage:

100-240Vac ±10%, 50/60Hz, 6.5A max; 12Vdc @ 5A

X-Ray Tube Voltage:

Nominal X-Ray tube voltage is adjustable between 80kV to 160kV

X-Ray Tube Current:

0.25mA to 3mA over specified tube voltage range

X-Ray Tube Power:

500W, maximum

Voltage Regulation:

Line: ±0.1% for a ±10% input line change of nominal input line voltage

Load: ±0.1% for a 0.3mA to 3mA load change

Voltage Accuracy:

Voltage measured across the X-Ray tube is within ±1% of the programmed value

Voltage Risetime:

Ramp time shall be <1 second from 10% to 90% of rated output

Voltage Overshoot:

Within 5% of rated voltage in <10ms

Voltage Ripple:

0.1% p p of rated voltage @ ≤1kHz

Current Regulation:

Line: ±0.1% for a ±10% input line change of nominal input line voltage

Load: ±0.5% @ 80-160kV, 0.3mA to 3mA

Current Accuracy:

Current measured through the X-Ray tube is within ±1% of the programmed value

Current Risetime:

<1 second from 10% to 90% of rated output

Arc Intervention:

4 arcs in 10 seconds with a 200ms quench = Shutdown

Filament Configuration:

Internal high frequency AC filament drive with closed loop filament emission control

Analog Interface:

0 to 10Vdc ground referenced signals

Digital Interface:

RS-232 interface.

Control Software:

A demo GUI for engineering evaluations will be provided for the RS-232 digital interface upon request.

Interlock Signals:

A hardware interlock functions in both analog and digital programming modes.

Operating Temperature:

0°C to +40°C

Storage Temperature:

-40°C to +70°C

Humidity:

95% relative humidity, non-condensing

Cooling:

Heat exchanger w/fan and oil pump, powered from DC input;

Input Line Connector:

3 pin, Phoenix Contact 1829167

Analog Interface Connector:

10 pin, Phoenix Contact 1755503

Digital Interface Connector:

9 pin D connector, female

Grounding Point:

8-32 ground stud provided on chassis

Dimensions:

See outline drawing

Weight:

125lbs (56.7kg)

Orientation:

Can be mounted in any orientation.

X-Ray Leakage:

Not to be greater than 0.5mR/hr at 5cm outside the external surface.

AC INPUT POWER J1 6 PIN CONNECTOR

Pin Signal Parameters
1 Line Line
2 Ground Ground
3 Neutral Neutral

ANALOG INTERFACE—JB15 10 PIN PHOENIX CONTACT

Pin Signal Parameters
1 X-Ray Signal +24Vdc =Enable X-Ray, 0Vdc/open = Disable X-Ray,
Zin=2.2kΩ
2 X-Ray Signal Return Signal Return
3 N/C N/C
4 kV Monitor 0-10Vdc = 0 to 178kV, Zout = 10kΩ
5 Signal Ground Signal Ground
6 mA Monitor 0-10Vdc = 0 to 3.4mA, Zout = 10kΩ
7 Fault Signal Open collector, High (Open) = No Fault, 35Vdc
@10mA maximum
8 HV ON Lamp Relay n/o Relay Normally Open, 50Vdc @ 1A maximum
9 HV ON Lamp Relay common Relay Common, 50Vdc @ 1A maximum
10 HV ON Lamp Relay n/c Relay Normally Closed ,50Vdc @ 1A maximum

LED INDICATORS

Indicator Signal Name Condition Illuminated When...
LED 1 OT Over temperature occurs
LED 2 ARC FLT Arc fault occurs
LED 3 UV Low kV occurs
LED 4 OV High kV occurs
LED 5 UC Low mA occurs
LED 6 OC High mA occurs
LED 7 X-RAY ON X-Rays are enabled
LED 8 PWR Power is ON

Tables & Diagrams

DIMENSIONS: in.[mm]

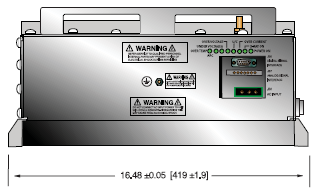

FRONT VIEW

XRB502 X-Ray Generator (Image 2)

BACK VIEW

XRB502 X-Ray Generator (Image 3)

TOP VIEW

XRB502 X-Ray Generator (Image 4)

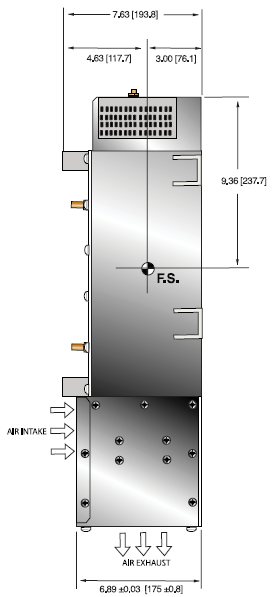

SIDE VIEW

XRB502 X-Ray Generator (Image 5)
