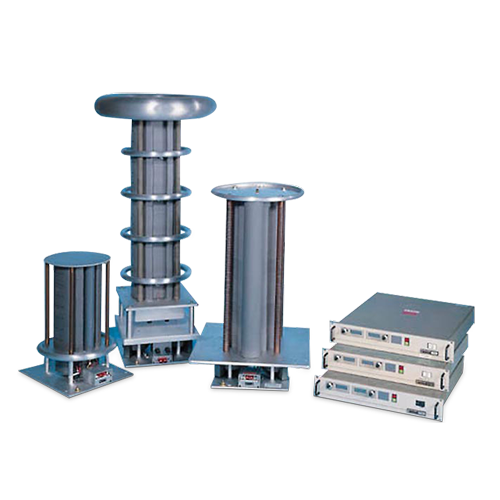

SLSシリーズ

出力160kV～360kV
低リップル、高安定度
過電流、過電圧、アーク保護
軽量、小型

*注: すべての仕様は予告なく変更される場合があります。最新版についてはこのデータシートの英語PDFをご覧ください。

2000W 高電圧電源

SLSシリーズの高電圧電源は、160kVから360kVの電圧出力範囲で最大2000ワットの電力を供給します。これらの電源は、弊社独自の制御による高周波共振インバーターを採用しており、過酷な環境条件でも高い信頼性で動作します。高電圧増倍装置は、固体カプセル化と空気のハイブリッド設計で構築し、全体寸法の小型化を実現しています。 20kVインターロッキングウエハーで構成される増倍装置は、さまざまな出力構成に対して柔軟な構成ブロックとなります。

典型的な用途:

イオン注入
粒子加速器
電子銃

Specifications

^{(Ref. 128016-001 REV. N)}

Options

eSL Ethernet Connectivity/VFD Front Panel

Input Voltage:

Standard: 220Vac ±10%, 50/60Hz @ 8A/phase, three phase

Optional: 200Vac ±10%, 50/60Hz @ 8.9A/phase, three phase

Output Voltage Range:

Models available from 160kV to 360kV and up
to 2000W. Each model is available with positive
or negative polarity outputs.

Voltage Regulation:

Better than 0.05% for specified line variations
and load variations.

Ripple:

0.1% p-p of maximum output voltage.
Remote Voltage Control:

0 to +10V for 0 to maximum voltage. Accuracy and
repeatability: 1% of maximum rating.

Remote Current Control:

0 to +10V for 0 to maximum voltage. Accuracy and
repeatability: 1% of maximum rating.

Voltage Monitor:

0 to 10V equivalent to rated voltage. Accuracy, 1% reading.
Current Monitor:

0 to 10V equivalent to rated current. Accuracy, 1% reading.

Stability:

0.05% per hour after 1/2 hour warm-up.

0.05% per 8 hours.

Slow Start:

Slow start times: 6 seconds standard.

Temperature Coefficient:

0.01% per degrees C.

Protection:

Overcurrent, Overvoltage, Arc protection, Overtemperature.

Arc Detect:

If 8 arcs occur in a 10 second, non-synchronous time window, the supply reverts to the Power Down Mode with an ARC fault displayed on the front panel default diagnostic display.

Environmental:

Temperature Range:

Operating: 0°C to 40°C

Storage: -20°C to 85°C

Humidity:

10% to 70%, non-condensing.

Dimensions:

Inverter Driver Chassis:

3.50”(2U)H x 19.0”W x 19.0”D (8.9cm x 48.3cm x 48.3cm)

Multiplier Unit:

Depends on model specified.

Distance from Stack to Driver:

2.5 meters ±0.1 meter maximum.

Signal Connector:

25 pin, male D connector, J3.

Metering:

Front panel, 3.5 digit, digital voltage and current meters.

Front Panel Controls:

Voltage and current are continuously adjustable by ten-turn potentiometers with lockable counting dials, ON/OFF circuit breaker/lamp, high voltage ON switch/indicator and high voltage OFF switch/indicator.

Front Panel Status Indicators:

Voltage Control Mode Overcurrent

Current Control Mode Overvoltage

Interlock Open Arc

Interlock Closed Regulation Error

High Voltage Inhibit Overtemperature

Overpower (optional)

Regulatory Approvals:

RoHS compliant.

Corona Dome Terminations:

The SLS Series of “stack” configured high voltage power supplies come in a various output voltages and different physical configurations. Appropriate corona relief is required for these units to operate at maximum output voltage. Frequently users will provide the corona relief needed so Spellman will provide stack assemblies that by themselves will not be able to operate at maximum output voltage corona free. Please be certain to discuss your requirements with Spellman to be assured you get a stack assembly in the physical configuration you require for your application. The optional K941 Toroid (5˝ x 20˝) should be considered if customer corona relief will not be provided.

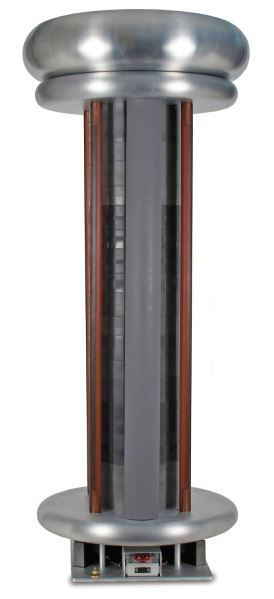

360kV Stack Shown with opptional K941 Toroid

Electronic Component (Power Source)

SLS series is intended for installation as a component of a system. It is designed to meet CE standards, with conditions of acceptance often being: customer provided enclosure mounting, EMC filtering, and appropriate protection, and isolation devices. The SLS series is not intended to be operated by end users as a stand-alone device. The SLS series power supply can only be fully assessed when installed within a system, and as a component part within that system.

eSL Option

The eSL Option provides a vacuum fluorescent front panel display and Ethernet connectivity. Both the 1U (1.75”) and 2U (3.5”) SL product offerings are available with the eSL Option. Using the front panel local controls the main menu has the following features:

Local/Remote Control

Allows operation from either the local front panel or remotely via the Ethernet Category 5 connector.

Features Menu

Allows control over Adjustable Overload Trip and Slow Start features.

Tutorial Menu

Provides information on how to use the local front panel interface.

Diagnostics Menu

Provides information on the revisions of the hardware, firmware and IP address. Additionally the Diagnostics Menu provides information on the status of the internal low voltage housekeeping power supply voltages.

eSL Option power supplies can still be fully controlled via the SL’s comprehensive remote analog interface, so these units are fully backwards compatible with standard SL power supplies.

SL Digital Interface

SLS SELECTION TABLE

Maximum Rating		Model Number
kV	mA
160	12.5	SLS160*2000
200	10.0	SLS200*2000
260	7.7	SLS260*2000
300	6.6	SLS300*2000
360	5.5	SLS360*2000

*Specify “P” for positive polarity or “N” for negative polarity Other combinations of voltage and current are available.

SLS I/O INTERFACE CONNECTOR 25 PIN

Pin	Signal
1	Power Supply Common
2	External Inhibit
3	External Interlock
4	External Interlock Return
5	Current Monitor
6	Voltage Monitor
7	+10V Reference
8	Remote Current Program In
9	Local Current Program Out
10	Remote Voltage Program In
11	Local Voltage Program Out
12	Optional EFR (common)
13	Optional EFR (normally closed)
14	Local HV OFF Out
15	HV OFF
16	Remote HV ON
17	Remote HV OFF Indicator
18	Remote HV ON Indicator
19	Remote Voltage Mode
20	Remote Current Mode
21	Spare
22	Remote PS Fault
23	+15V Output
24	Power Supply Common
25	Shield Return
