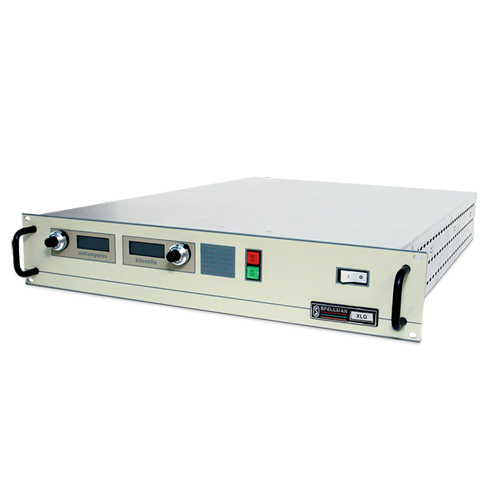

XLGシリーズ
- 最大出力電圧130kV
- 接地基準フィラメント電源
- 「ホットアノード」、正極性
- ローカル、リモートプログラミング
*注: すべての仕様は予告なく変更される場合があります。最新版についてはこのデータシートの英語PDFをご覧ください。
3~260W産業用X線ジェネレーター
XLGシリーズは、出力電圧範囲が130kVまでの安定化高圧電 源です。また、高精度な共振コンバータ技術により、リップルは 大変低くなっています。出力電圧及び管電流の安定度により、従 来の技術での性能を大幅に改善しました。このシリーズは、安定 したDCフィラメント電源を含む、X線用途に必要な電力制御及 びサポート機能を提供します。また、ローカル及びリモート・プ ログラミング、モニタ、安全インターロックや、短絡、過負荷の 保護回路も内蔵されています。
用途
- メッキ測定
- 鉱物解析
- 蛍光X線
Specifications
(Ref. 128012-001 REV. M)
SPECIFICATIONS
Input Voltage:
115Vac±10%, 50-60Hz single phase or
220Vac±10%, 50-60Hz single phase.
Voltage and Current Control:
Local: continuously adjustable from zero to maximum rating via a ten-turn potentiometer with a lockable counting dial.
Remote: 0 to +10Vdc proportional from 0 to full output. Accuracy: ±1%. Input Impedance: 10Mohm.
Filament:
Specify at time of order:
FH: 9A, 3V.
FL: 3A, 3V.
Preheat level is 0.45 amps in standby
Voltage Regulation:
Load: 0.005% of full output voltage no load to full load.
Line: 0.005% for input voltage range change.
Current Regulation:
Load: 0.05% of full current ±100µA from 0 to full voltage.
Line: 0.05% of rated current over specified input range.
Ripple:
0.03% rms below 1kHz.0.75% rms above 1kHz.
Temperature Coefficient:
100ppm/°C.
Stability:
0.01%/8 hrs after 1/2 hour warm-up.
0.02% per 8 hours (typical).
Cooling:
Free air convection.
Metering:
Digital voltage and current meters (3.5 digits), 1% accuracy.
HV Output Cable:
10’ (3.3m) of shielded HV cable removable at rear.
I/O Connectors:
25 pin D-type for control interface with mating connector provided.
Dimensions:
30 to 60kV: 3.5”H x 19”W x 19”D (8.9cm x 48.3cm x 48.3cm).
80 to 130kV: 3.5”H x 19”W x 24”D (8.9cm x 48.3cm x 61.0cm).
Regulatory Approvals:
Compliant to EEC EMC Directive. Compliant to EEC Low Voltage Directive.
FRONT PANEL STATUS INDICATORS:
Overvoltage Voltage Control Mode
Overtemperature Current Control Mode
Regulation Error Interlock Open
Arc Interlock Closed
HV ON: Red HV OFF: Green
OPTIONS
APT - Adjustable Power Trip
AT - Arc Trip
SS(x) - Non-Standard Slow Start
NSS - No Slow Start
IO - Instant ON
LL(x) - Extra Length HV Cable
SL - Slides
Electronic Component (Power Source)
XLG series is intended for installation as a component of a system. It is designed to meet CE standards, with conditions of acceptance often being: customer provided enclosure mounting, EMC filtering, and appropriate protection, and isolation devices. The XLG series is not intended to be operated by end users as a stand-alone device. The XLG series power supply can only be fully assessed when installed within a system, and as a component part within that system.
XLG INPUT CURRENT
Model | 115Vac | 220Vac |
---|---|---|
3W-30W | 0.6A | 0.3125A |
40W-60W | 1.2A | 0.625A |
70W-150W | 3.0A |
1.56A |
160W-260W | 5.25A |
2.71A |
XLG SELECTION TABLE 0.1mA, 0.2mA , 0.5mA
kV | 0.1mA | 0.2mA | .5mA |
---|---|---|---|
30 | XLG30P3* | XLG30P6* | XLG30P15* |
35 | XLG35P3.5* | XLG35P7* | XLG35P17.5* |
40 | XLG40P4* | XLG40P8* | XLG40P20* |
50 | XLG50P5* | XLG50P10* | XLG50P25* |
60 | XLG60P6* | XLG60P12* | XLG60P30* |
80 | XLG80P8* | XLG80P16* | XLG80P40* |
100 | XLG100P10* | XLG100P20* | XLG100P50* |
120 | XLG120P12* | XLG120P24* | XLG120P60* |
130 | XLG130P13* | XLG130P26* | XLG130P65* |
*Specify FH for High power (27W) filament, FL for Low power (9W) filament.
XLG SELECTION TABLE 1.0mA, 2.0mA, 3.0mA
kV | 1.0mA | 2.0mA | 3.0mA |
---|---|---|---|
30 | XLG30P30* | XLG30P60* | XLG30P90* |
35 | XLG35P35* | XLG35P70* | XLG35P105* |
40 | XLG40P40* | XLG40P80* | XLG40P120* |
50 | XLG50P50* | XLG50P100* | XLG50P150* |
60 | XLG60P60* | XLG60P120* | XLG60P180* |
80 | XLG80P80* | XLG80P160* | --- |
100 | XLG100P100* | XLG100P200* | --- |
120 | XLG120P120* | XLG120P240* | --- |
130 | XLG130P130* | XLG130P260* | --- |
*Specify FH for High power (27W) filament, FL for Low power (9W) filament.
XLG CONNECTOR 25 PIN
Pin | Signal | Signal Parameters |
---|---|---|
1 | Power Supply Common | Signal Ground |
2 | External Inhibit | Ground=Inhibit, Open=HV On |
3 | External Interlock | +15V at Open, <15mA at Closed |
4 | External Interlock Return | Return for Interlock |
5 | Current Monitor | 0 to 10V=0 to 100% Rated Output |
6 | kV Test Point | 0 to 10V=0 to 100% Rated Output |
7 | +10V Reference | +10V, 1mA Max |
8 | Remote Current Program In | 0 to 10V=0 to 100% Rated Output |
9 | Local Current Program Out | Front Panel Program Voltage |
10 | Remote Voltage Program In | 0 to 10V=0 to 100% Rated Output |
11 | Local Voltage Program Ou | Front Panel Program Voltage |
12 | Power Monitor | 0 to 10V=0 to 100% Rated Output (Optional) |
13 | Remote Power Program I | 0 to 10V=0 to 100% Rated Output (Optional) |
14 | Local HV Off Out | +15V at Open, <25mA at Closed Connect to HV OFF for Fp Operation |
15 | HV Off | +15V at Open, <25mA at Closed Connect to HV OFF for Fp Operation |
16 | Remote HV On | +15V, 10mA Max=HV Off 0=HV On, +15V, 10mA Max=HV Off |
17 | Remote HV Off Indicator | +15V, 10mA Max=HV Off 0=HV On, +15V, 10mA Max=HV Off |
18 | Remote HV On Indicator | 0=HV Off, +15V, 10mA Max=HV O |
19 | Remote Voltage Mode | Open Collector 50V Max, 10mA Max On=Active |
20 | Remote Current Mode | Open Collector 50V Max, 10mA Max On=Active |
21 | Remote Power Mode | Open Collector 50V Max, 10mA Max On=Active |
22 | Remote PS Fault | 0=Fault, +15V, 0.1mA Max=No Fault |
23 | +15V Output | +15V, 100mA Max |
24 | Power Supply Common | Signal Ground |
25 | Shield Return | Shield Return |
Tables & Diagrams
DIMENSIONS: in.[mm]
FRONT VIEW
TOP VIEW
BACK VIEW
