SpellmanHV DXM Series 300W-1200W Industrial X-Ray Generator Module

DXM Series

  • Models from 20kV-160kV, 300W, 600W and 1200W
  • Universal Input, Power Factor Corrected
  • Hot Anode or Hot Cathode X-Ray Tube Capable
  • USB, Ethernet and RS-232 Standard Interfaces
  • CE Compliant, UL Recognized and RoHS Compliant
  • User Programmable Ramping and Arc Detect Feature

*Note: All specifications are subject to change without notice. Please consult the English PDF version of this datasheet for the most up-to-date revision.

 Two Year Extended Warranty & RoHS Compliant Logos

DXM Series 300-1200W Industrial High Voltage X-Ray Generators

Spellman’s new DXM Series of X-Ray generator modules are designed for OEM applications up to 75kV at 1200 watts. Its universal input, small package size and choice of three standard digital interfaces simplifies integrating the DXM into your X-Ray analysis system. Models are available to operate either floating filament (negative HV polarity) or ground referenced filament (positive HV polarity), X-Ray tube designs. DSP based emission control circuitry provides excellent regulation of emission current, along with outstanding stability performance.

Typical applications:

  • Plastics Sorting
  • Crystal Inspection
  • Plating Measurement
  • Diamond Inspection
  • Mineral Analysis
  • X-Ray Fluorescence
  • X-Ray Diffraction

사양

(Ref. 128034-001 REV. AG)

Input Voltage:

Power factor corrected input

100-240Vac ±10% (90-264Vac):

47-63Hz @ 4.6A for 300 watt units

200-240Vac ±10% (180-264Vac):

47-63Hz @ 4.3A for 600 watt units

47-63Hz @ 8.2A for 1200 watt units

Output Voltage:

7 models—20kV, 30kV, 40kV, 50kV, 60kV, 70kV, 75kV and 160kV

Output Polarity:

Negative-for floating filament X-ray tubes

Positive-for ground referenced filament X-ray tubes

Power:

3 power ranges available—300 watts, 600 watts and 1200 watts

Other power levels available on special order.

Output Voltage Regulation:

≤ 0.01% of rated output voltage over specified input voltage range

≤ 0.01% of rated output voltage for a full load change

Emission Current Regulation:

≤ 0.01% of rated output current over specified input voltage range

≤ 0.01% of rated output current for a change from 30% to 100% of rated output voltage

Filament is disabled when kV is <30% of full scale output

Ripple:

≤ 1%rms at >20 kHz, 0.1%rms below 20 kHz

Stability:

≤ 25ppm/hr after a 2 hour warm up

Temperature Coefficient:

≤ 50ppm per degree C

Environmental:

Temperature Range:

Operating: 0°C to 40°C

Storage: -40°C to 85°C

Humidity:

20% to 85% RH, non-condensing.

Filament Configuration:

Closed loop emission control regulates filament setting to provide desired X-Ray tube emission current. Two types are available: Floating Filament (ac output referenced to negative output voltage) and Ground Referenced Filament (dc output referenced to ground).

Output:

0-5 amps at a compliance of 10 volts, maximum. The filament loop is disabled when the kV output is less than 30% of full scale output to protect the X-Ray tube. Other filament levels available on special order.

Control Interface

Local Interface:

Potentiometers are provided to adjust filament limit and preheat levels

Remote Interface:

USB, Ethernet and RS232 are standard. All digital monitors have an accuracy specification of 2%

Control Software:

A Windows graphical user interface example is provided.

High Voltage Enable:

A hardware based, dry contact closure will enable the power supply into the high voltage on mode

Monitor Signals:

Voltage and current monitor signals are scaled 0-10Vdc equals 0-100% of full scale, accuracy is 1%

Cooling:

Forced air

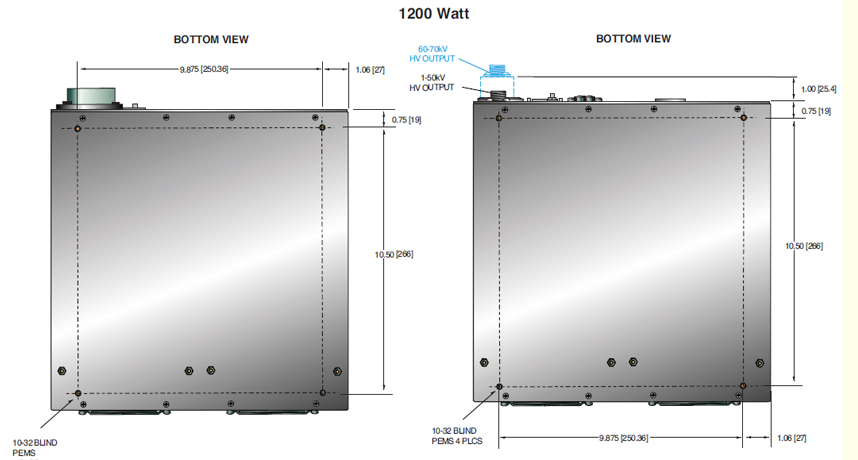

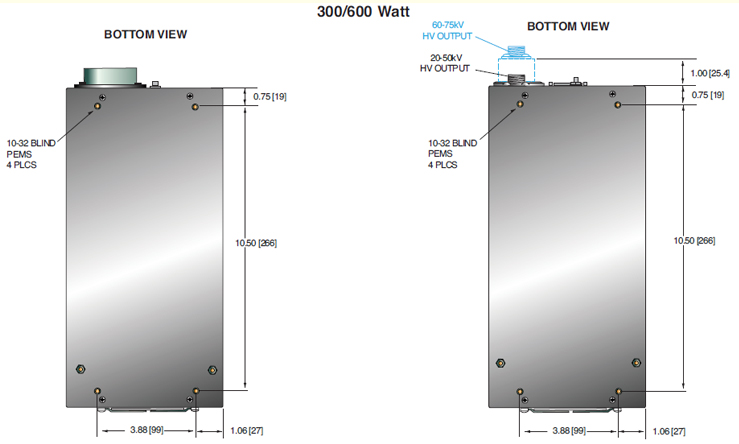

Dimensions:

300/600 Watts: 4.75. H X 6. W X 12. D

(120.65mm x 152.4mm x 304.8mm)

1200 Watts:  4.75. H X 12. W X 12. D
(120.65mm x 304.8mm x 304.8mm)

160kV: 10.5˝ H X 19˝ W X 21.5˝ D
(266.7mm x 482.6mm x 546.1mm)

Weight:

300/600 Watts: 14 pounds (6.35kg)

1200 Watts:  26 pounds (11.8kg)

160kV:  142 pounds (66.4kg)

Input Line Connector:

IEC320 with EMI filter

Output Connector:

Depends upon polarity selected. See table and drawing.
Other connectors and pinouts available on special order.

Regulatory Approvals:

Compliant to EEC EMC Directive. Compliant to EEC Low Voltage Directive. UL/CUL recognized, File E227588. RoHS Compliant.

DXM SELECTION TABLE— 300W, 600W, 1200W

300 Watt 600 Watt 1200 Watt
kV mA Model mA Model mA Model
20 15 DXM20*300 30 DXM20*600 60 DXM20*1200
30 10 DXM30*300 20 DXM30*600 40 DXM30*1200
40 7.5 DXM40*300 15 DXM40*600 30 DXM40*1200
50 6 DXM50*300 12 DXM50*600 24 DXM50*1200
60 5 DXM60*300 10 DXM60*600 20 DXM60*1200
70 4.28 DXM70*300 8.56 DXM70*600 17.12 DXM70*1200
75 4 DXM75*300 8 DXM75*600 16 DXM75*1200
 160   7.5 DXM160N1200

*Specify “P” for positive polarity or “N” for negative polarity

FILAMENT TERMINAL BLOCK— TB1 TWO POSITION TERMINAL BLOCK

Pin Signal Signal Parameters
1 Filament Output 0-5 amps, 10Vdc Maximum
2 Filament Output Filament Return

For positive polarity/ground referenced filament units

DXM ANALOG INTERFACE— J2 15 PIN MALE D CONNECTOR

Pin Signal Signal Parameters
1 Power Supply Fault Open Collector, 35V @ 10mA Maximum
2 Current Program In 0 to 10V=0 to 100% Rated Output, Zin=10MΩ
3 Voltage Program In 0 to 10V=0 to 100% Rated Output, Zin=10MΩ
4 Filament Limit Input 0 to 10V=0 to 100% Rated Output, Zin=10MΩ
5 Local Filament Limit Multi-turn front panel potentiometer
6 Filament Preheat Input 0 to 10V=0 to 100% Rated Output, Zin=10MΩ
7 Local Filament Preheat Multi-turn front panel potentiometer
8 Voltage Monitor 0 to 10V=0 to 100% Rated Output, Zout =4.99k, 1%
9 Signal Ground Ground
10 Current Monitor 0 to 10V=0 to 100% Rated Output, Zout =4.99k, 1%
11 X-ray Enable Input Connect to Pin 12 to HV Enable Supply
12 X-ray Enable Output +15V @ Open, ≤15mA @ Closed
13 Filament Monitor 1 Volt=1 Amp, Zout=10kΩ
14 X-ray On Output Signal Open Collector, 35V @10mA Maximum
15 Spare N/C

RS-232 DIGITAL INTERFACE— J3 9 PIN FEMALE D CONNECTOR

Pin Signal Signal Parameters
1 N/C No Connection
2 TX out Transmit Data
3 RX in Receive Data
4 N/C No Connection
5 SGND Ground
6 N/C No Connection
7 N/C No Connection
8 N/C No Connection
9 N/C No Connection

USB DIGITAL INTERFACE— J4 4 PIN USB "B" CONNECTOR

Pin Signal Signal Parameters
1 VBUS +5 Vdc
2 D- Data -
3 D+ Data +
4 GND Ground


ETHERNET DIGITAL INTERFACE— J5 8 PIN RJ45 CONNECTOR

Pin Signal Signal Parameters
1 TX+ Transmit Data +
2 TX- Transmit Data 3
3 RX+ Receive Data +
4 N/C No Connection
5 N/C No Connection
6 RX- Receive Data -
7 N/C No Connection
8 N/C No Connection

R24 HV CONNECTOR PINOUT J6 CATHODE OUTPUT (160kV)

Pin Output Connection
C (common) High Voltage Output
S (small) High Voltage Output
L (large) Filament Output

HIGH VOLTAGE OUTPUT CONNECTOR—
J6 FLOATING FILAMENT

20kV-75kV Negative Polarity:

Claymount Mini Federal standard X-Ray connector

160kV Negative Polarity:

R24 (cable not provided)

HIGH VOLTAGE OUTPUT CONNECTOR—
J6:GROUND FILAMENT

Positive Polarity: Spellman High Voltage

Delrin Drywell connector.

4 foot (1.21m) long high voltage cable provided

For positive polarity units a ground referenced filament output is provided on a two position terminal TB1. See table

CLAYMOUNT HV CONNECTOR

Pin Output Connection
C (common) High Voltage Output
S (small) High Voltage Output
L (large) Filament Output
G (grid) Filament Output

Note: No high voltage cable is provided

Recommended Cable: Claymount part number: 12096
Cable assembly, L3 CA11, CA11, 10F, CS=Bare 10 foot, Mini Federal Connectors on both ends, "C" and "S" are both connected to the bare shield wire
