SpellmanHV MXR Series high performance DC-DC converters for Mass Spectrometry and electron microscopes

SERIE MXR

  • Polaridad reversible conmutable en caliente, se establece en <3ppm dentro de 2s
  • Salidas del monitor de voltaje y de corriente
  • Protección de arco y corto circuito
  • Muy buena Regulación, baja ondulación, alta estabilidad
  • Reconocido por UL, marcado CE y compatible con RoHS
  • Personalización OEM Disponible

 CE ROHS MarkingUK-CAUL Recognized - Canada and USExtended Warranty Available

FUENTE DE ALIMENTACIÓN DE INVERSIÓN DE POLARIDAD CONMUTABLE SIN DESCONEXIÓN

La serie MXR de Spellman son convertidores DC-DC de alto rendimiento bien regulados. La especificación de baja ondulación del MXR lo hace ideal para espectrometría de masas y microscopios de electrones. El MXR20 tiene una especificación de 20kV @ 300uA y el MXR30 tiene una especificación de 30kV @ 300uA. Ambos son empaquetados en una carcasa metálica blindada y están disponibles en opciones de control analógico o digital RS232. Estas unidades cuentan con una entrada de señal lógica para controlar la inversión de la polaridad de salida. Se proporcionan monitores de voltaje, polaridad y corriente. La versión digital también proporciona una entrada opto aislada de interlock (Habilitar HV/Deshabilitar). Fácilmente personalizada para cumplir con los requisitos del OEM, la serie MXR se puede proporcionar con control de corriente, rendimiento de ondulación mejorado y capacidades de voltaje y corriente más altas.

ROHS 200295EC compliant

Especificaciones

(Ref. 128116-001 REV. H)

OPTIONS

MXR can be ordered as an analog or a digital controlled unit. See How To Order information below.

Custom captive cable options available upon request.

SPECIFICATIONS

Input Voltage:

24Vdc (±5%)

Input Current:

≤1.25 A nominal continuous

≤4.5 A peak during reversing

Output Voltage:

0V to ±20kV (MXR20)

0V to ±30kV (MXR30)

Output Current:

<300μA

Voltage Regulation:

Load: <50ppm of maximum output voltage for a no load to full load change

Line: <20ppm of maximum output voltage for a 5% input line change

Programming and Monitor Accuracy:

±2% Voltage Programming/Monitor

Ripple:

20kV: 100mVp-p
30kV: 150mVp-p

Stability:

1hr = 10ppm max. after 1 hr warm-up

8hrs = 20ppm max. after 1 hr warm-up

Temperature Coefficient:

10ppm/°C

Reversing Time:

2s for +20kV to -20kV or +30kV to -30kV

settling to <3ppm, faster versions are available

Environmental:

Temperature Range:

Operating: 10˚C to 50˚C

Storage: -35˚C to 85˚C

Humidity:

0% to 85%, non-condensing

Cooling:

Convection cooled

Dimensions:

2.05˝ H X 8.47˝ W X 9.45˝ D (52mm X 215mm X 240mm)

Weight:

8.80 pounds (4.0kg)

Input Connectors:

Analog units: Power and Control: 12 way Samtec FWS 12-04-T-S-RA

Digital Units:

Power: 2 way Molex Mini-fit Jr 39-30-1022
Control: 10 way ‘IDC Ribbon cable’ connector 3M N3793-5302RB

Output Connectors:

Standard output is GES HB30 receptacle (GES p/n: 7331051). Mating plug is GES HS30 (p/n: 7331050, not included). Mating cable assembly can be ordered separately, see How To Order information below.

Regulatory Approvals:

UL recognized component (RC). File number E354595. Compliant to IEC/UL 61010-1 Safety requirements for electrical equipment for measurement, control and laboratory use; CAN/CSA-C22.2 No.61010-1. CE marked to EN 61010-1. UKCA marked to BS EN 61010-1. RoHS compliant. As the unit is designed for incorporation within the user's system it is not tested against any specific EMC standards. Compliance with any relevant EMC standards on a system level are the responsibility of the equipment designer.

ANALOG UNITS—POWER AND CONTROL 12 PIN SAMTEC FWS CONNECTOR

PIN SIGNAL
1 Current monitor output 0-10V = 0V to 500μA Zout=10kΩ, Accuracy ±5%
2 +24Vdc Input
3 Voltage monitor output 0-10V = 0V to Max V Zout=10kΩ, Accuracy ±2%
4 N/C
5 N/C
6 N/C
7 Voltage program input 0-10V = 0V to Max V Zin>1MΩ, Accuracy ±2%
8 Polarity set input, TTL levels: LO = +VE, HI/Open = -VE
9 Signal ground
10 Ground return for +24Vdc
11 N/C
12 Polarity status output LO (<200mV, source 1.5kΩ) = +VE, HI (+24V, source 2.2kΩ) = -VE



DIGITAL UNITS—POWER 2 PIN MOLEX MINI-FIT JR

PIN SIGNAL
1 +24Vdc Input
2 Ground return for +24Vdc



DIGITAL UNITS—CONTROL 10 PIN IDC RIBBON CONNECTOR

PIN SIGNAL
1 Transmit data (output) with respect to pin 2
2 Serial signal ground return (if required)
3 Receive data (input) with respect to pin 2
4 N/C
5 N/C
6 N/C
7 Interlock opto-isolator input (0mA = Voltage Inhibit) see*
8 Interlock opto-isolator signal return
9 Polarity set opto-isolator input (0mA = -VE) see*
10 Polarity set signal opto-isolator signal return



How to Order:
Standard Part No.: MXR20PN24
Part No.: MXR30PN24
Digital (option): PART No.: MXR20PN24/DCC2
PART No.: MXR30PN24/DCC2
Mating cable,
length 2m:
Part No.: HVC30/1S/1279

Tablas y Diagramas

DIMENSIONS: in.[mm]
SIDE VIEW

SpellmanHV MXR Series DC-DC Converters Side View

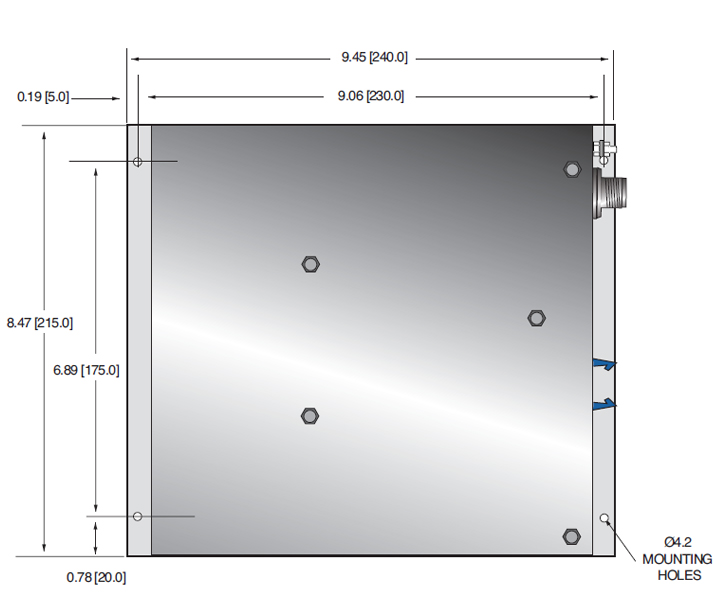

TOP VIEW
