SpellmanHV MX2.5PN High Performance DC-DC Converter

MX2.5PN

  • 2.5kV Hot Switchable Polarity Reversible Via a Logic Signal
  • Well-Regulated, Low Ripple
  • Polarity Reversal Within 300mS
  • Compact and Cost Effective PCB Mount Module

*Note: All specifications are subject to change without notice. Please consult the English PDF version of this datasheet for the most up-to-date revision.

 CE ROHS Marking

High Performance High Voltage Power Supply

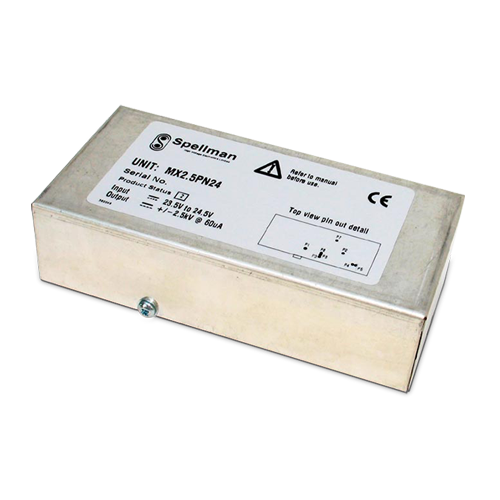

Spellman’s MX2.5 is a well-regulated high performance DC-DC converter featuring a “hot switchable” polarity reversal capability. The MX’s low ripple specification makes it ideal for Mass Spectrometry applications; especially security detection systems, Dynodes, sample ionization as well as capillary electrophoresis and electrostatic printing applications.

The MX2.5 is rated at 2.5kV @ 60uA and is packaged in a shielded metal enclosure. This unit features a logic signal input to control output polarity reversal. A HV inhibit feature, along with voltage and current monitors are provided. Easily customized to meet OEM requirements, the MX2.5 can be provided with improved ripple performance and higher voltage and current capabilities.

Typical applications:

  • Mass Spectrometry
  • Capillary Electrophoresis
  • Electrostatic Printing

사양

(Ref. 128049-001 REV. H)

Input Voltage:

+24Vdc, ±0.5 volt

Input Current:

<200ma>

Output Voltage:

±100Vdc to ±2.5kV

Output Current:

0 to 60uA max.

Polarity:

Remotely reversible via logic signal, 300mS to settle to ±1%, 1 Hz maximum switch rate

Voltage Regulation:

Load: 0.05% of maximum output voltage for a no load to full load change

Line: 0.05% of maximum output voltage for a 1 volt input line change

Voltage Programming:

0 to 10 volt corresponds to 0 to 100% of rated output voltage

Voltage/Current Monitor:

0 to 10 volt corresponds to 0 to 100% of rated output voltage/current

Programming and Monitor Accuracy:

±1% Voltage Programming/Monitor

±2% Current Monitor

Ripple:

≤ 0.02% Volts p-p

Stability:

0.02% per hour after 1 hour warmup

Temperature Coefficient:

≤ 50ppm per degree C

Environmental:

Temperature Range:

Operating: 0°C to 40°C

Storage: -40°C to 85°C

Humidity:

10% to 90%, non-condensing

Cooling:

Convection cooled

Dimensions:

1.18. H X 2.36. W X 4.72. D (30mm X 60mm X 120mm)

Weight:

Approximately 8.82 oz. (250g)

Interface/Power Connector:

PCB mount pins

HV Output Connector:

PCB mount pins

Regulatory Approvals:

Compliant to EEC EMC Directive. Compliant to EEC Low Voltage Directive.

MX2.5 INPUT/OUTPUT CONNECTIONS

Pin Signal Signal Parameters
1 +24V Power Input
2 0v Signal and Power Ground
3 Vprog 0-10V Programming Voltage
4 Polarity Change Polarity Change Input
5 Shutdown Output Inhibit, Disables HV Output Down to <60V Within 300ms
6 Vmon 0-10V Output Voltage Monitor
7 Output HT Output
8 Imon 0-10V Output Current Monitor



How to Order:
Standard: PART NO.: MX2.5PN24

테이블 및 다이어그램

DIMENSIONS: mm

SIDE VIEW

MX2.5PN High Performance DC-DC Converter (Image 2)

BOTTOM

VIEW ON PINS

MX2.5PN High Performance DC-DC Converter (Image 3)
