XRB100 Monoblock® 工業用X線ジェネレーター (featured)

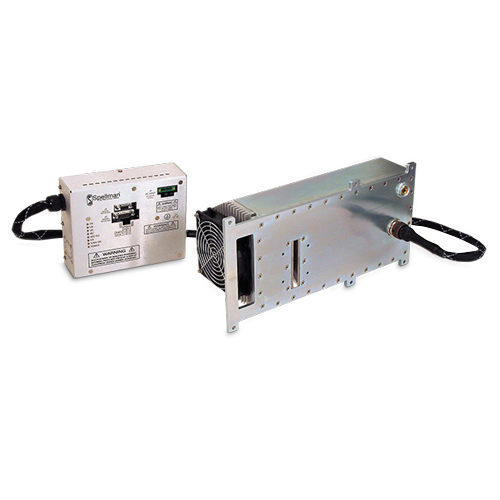

XRB100N100 Monoblock® 工業用X線ジェネレーター

一体型HV電源、フィラメント電源、X線管、ビームポートおよび制御電子回路
小型軽量
ユニバーサル入力、内蔵EMIフィルターによる力率改善
あらゆる物理的方向に取付け可能
アナログ制御インターフェイスと標準RS-232デジタルインターフェイス

*注: すべての仕様は予告なく変更される場合があります。最新版についてはこのデータシートの英語PDFをご覧ください。

100kV、100W X線源

スペルマンのX線源Monoblock®XRB100シリーズは、OEMアプリケーション向けに設計されており、内部のX線管に100ワットで最大100kVまでの電力を供給します。ユニバーサル入力、小型パッケージ、標準アナログ、RS-232デジタル・インターフェースなどの機能により、XRB100をお客様のX線装置に容易に組み込むことが可能です。独自のエミッション制御回路はX線管電流の調整に優れており、際立った安定性を提供します。

用途

X線走査、食品検査、液体レベル確認およびセキュリティ

Specifications

^{(Ref. 128072-001 REV. L)}

X-Ray Characteristics:

Tube Type: Stationary anode, tungsten target

Focal Spot: 0.5mm (IEC 336)

Beam Filter: Lexan: 3.2mm

Oil: 10mm ±0.1mm

Glass: 1.8mm max

Beam Geometry: Symmetrical fan 74° x 10° ±1°

Input Voltage:

Power factor corrected input 0.98, 100-240Vac ±10% 50/60Hz, 2A, maximum

X-Ray Tube Voltage:

Nominal X-Ray tube voltage is adjustable between 40kV to 100kV

X-Ray Tube Current:

100uA to 1mA over specified tube voltage range

X-Ray Tube Power:

100W, maximum continuous

Voltage Regulation:

Line: ±0.1% of maximum output voltage over a ±10% change of nominal input line voltage

Load: ±0.1% of maximum rated voltage for 100uA to 1mA load change

Voltage Accuracy:

Voltage measured across the X-Ray tube is within ±2% of the programmed value

Voltage Risetime:

Ramp time shall be 1 second from 10% to 90% of maximum rated output voltage

Voltage Overshoot:

5% of maximum voltage, to return within 2.5% of maximum voltage in less than 50ms

Voltage Ripple:

0.5% peak to peak of maximum voltage for frequencies ≤ 1kHz

Emission Current Parameters Current Regulation:

Line: ±0.5% of rated output current over a ±10% change of nominal input line voltage

Load: ±0.5% of rated output current for a change from 50% to 100% of rated output voltage

Current Accuracy:

Current measured through the X-Ray tube is within ±1% of the programmed value

Current Risetime:

Ramp time shall be 1 second from 10% to 90% of maximum rated current

Arc Intervention:

3 arcs in 10 seconds with a 200ms quench = Shutdown

Filament Configuration:

Internal high frequency AC filament drive with closed loop filament emission control

Analog Interface:

Ground referenced 0 to 9Vdc for all programming and monitoring signals. Relay contacts and open collector signals for other signals. See analog interface connector pin out table.

Digital Interface:

Jumpers are needed to be configured and the digital interface cable installed to enable the RS-232 interface.

Control Software:

A demo GUI is available for engineering evaluations.

Interlock/Signals:

A hardware interlock functions in both analog and digital programming modes. The hardware X-Ray Enable signal only functions in analog programming mode.

Operating Temperature:

0°C to +40°C

Storage Temperature:

-40°C to +70°C

Humidity:

10% to 95% relative humidity, non-condensing

Cooling:

Forced air and natural convection augmented by customer provided external cooling fan to maintain oil temperature below 55°C.

Input Line Connector:

3 pin, Phoenix Contact 1829167, SHV part number 105725-219. Mating connector Phoenix Contact #1805990, SHV part number 105808-475 provided with unit.

Analog Interface Connector:

15 pin D connector, male

Digital Interface Connector:

9 pin D connector, female

Grounding Point:

M4 ground stud provided on chassis

Dimensions:

See page 3 of 3

Weight:

55lbs (25kg)

Orientation:

Can be mounted in any orientation.

X-Ray Leakage:

Not to be greater than 0.5mR/hr at 5cm outside the external surface.

AC LINE POWER CONNECTOR— J1 THREE POSITION PHOENIX CONTACT

Pin	Signal
1	Earth Ground
2	Line
3	Neutral

Mating connector provided with unit

RS-232 DIGITAL INTERFACE— J3 9 PIN FEMALE D CONNECTOR

Pin	Signal	Parameters
1	N/C	No Connection
2	TD	Transmit Data
3	RD	Receive Data
4	N/C	No Connection
5	SGND	Signal Ground
6	NC	No Connection
7	NC	No Connection
8	NC	No Connection
9	NC	No Connection

XRB ANALOGINTERFACE— J2 15 PIN MALE D CONNECTOR

Pin	Signal	Parameters
1	Power Supply Fault Output PARAMETERS	Open collector, 35V @ 10mA max. high = no fault
2	mA Program Input	0 to 9.00Vdc = 0 to 100% rated output, Zin =10MΩ
3	kV Program Input	0 to 9.00Vdc = 0 to 100% rated output, Zin =10MΩ
4	X-Ray On Lamp Relay Output	Common, dry contacts, 30Vdc @ 1A, max
5	X-Ray On Lamp Relay Output	Normally open, X-Ray ON = closed
6	mA Monitor Output	0 to 9Vdc = 0 to 100% rated output, Zout =10kΩ
7	X-Ray On Lamp Relay Output	Normally closed, X-Ray ON = open
8	kV Monitor Output	0 to 9.00Vdc = 0 to 100% rated output, Zout =10kΩ
9	Signal Ground	Ground
10	Signal Ground	Ground
11	HV Interlock Return Input	Connect to Pin 12 to close HV interlock
12	HV Interlock Output	+15Vdc @ open, 5mA when connected to pin 11
13	X-Ray Enable Output	+15Vdc @ open, 5mA when connected to pin 15
14	X-Ray Status Output	Open collector, 35V @ 10mA max high = X-Ray OFF
15	X-Ray Enable Return Input	Connect to pin 13 to enable X-Ray generation

XRB ANALOGINTERFACE— J2 15 PIN MALE D CONNECTOR

Indicator	Signal Name	Condition Illuminated When...
LED 1	OV	High kV occurs
LED 2	UV	Low kV occurs
LED 3	UC	Low mA occurs
LED 4	OC	High mA occurs
LED 5	ARC FLT	Arc fault occurs
LED 6	OT	Over temperature occurs
LED 7	X-RAY ON	X-Rays are enabled
LED 8	PWR	Power is ON
