PCM シリーズ

出力電圧 1kV～70kV
低保存エネルギー
UL認証、CE準拠
OEMカスタム化可能

*注: すべての仕様は予告なく変更される場合があります。最新版についてはこのデータシートの英語PDFをご覧ください。

2年間延長保証ロゴ RoHs準拠ロゴ

120W高電圧電源

　PCMシリーズは、1kV〜70kVの高圧を出力します。PCMシリーズはユニバーサル入力（85〜265Vac）と力率0.99の回路を備えています。この極性固定タイプモジュール（ご注文時に正または負をご指定下さい。）は、自動クロスオーバーで電圧と電流を制御し、高精度アプリケーションに最適です。またアークと短絡保護を備えた設計で過酷な環境下での動作を可能にしす。

用途

電気泳動装置
検出器アレー
静電紡糸
Hi-Pot試験
ケーブルテスト

Specifications

^{(Ref. 128006-001 REV. T)}

Input:

85-265Vac, 47-63Hz @ 1.8A, power factor corrected.

UL® rated for 85-250Vac input for 1kV to 5kV models.

Power Factor (Typical):

FL: 0.99

NL: 0.98

Efficiency:

80 to 85%, typical

Output:

11 models from 1kV to 70kV. Positive or negative polarity outputs, specify at time of order.

Voltage Regulation:

Load: 0.01% of output voltage, no load to full load.

Line: ±0.01% for ±10% change in input voltage.

Current Regulation:

Load: 0.01% of output current from 0 to rated voltage. Line: 0.01% of rated current over specified input range.

Ripple:

0.1% p-p of maximum output voltage.

Voltage Stability:

0.02% per 8 hours.

Temperature Coefficient:

100ppm per °C, voltage or current regulated.

Environmental:

Operational: 0 to 40°C

Storage: -40°C to +85°C

Humidity: 0 to 90%, non-condensing

Dimensions:

1kV to 50kV: 3.65”H x 5”W x 9”D (9.27cm x 12.7cm x 22.9cm).

60, 70kV: 3.65”H x 5”W x 11”D (9.27cm x 12.7cm x 27.9cm).

Weight:

7 pounds (3.18kg)

AC Input Connectors:

IEC320 with mating cable.

Interface Connector:

15 pin D connector.

HV Output Cable:

Spellman Delrin type connector with 36” (91.4cm) shielded cable.

Front Panel Ground Connection:

Threaded 8-32 ground stud

Regulatory Approvals:

Compliant to EEC EMC Directive. Compliant to EEC Low Voltage Directive. UL/CUL recognized, File E148969 (up to 60kV only). RoHS Compliant

PCM SELECTION TABLE

Maximum Rating	Model Number
kV	mA
1	120	PCM 1*120
3	40	PCM 3*120
5	24	PCM 5*120
10	12	PCM 10*120
15	8	PCM 15*120
20	6	PCM 20*120
30	4	PCM 30*120
40	3	PCM 40*120
50	2.4	PCM 50*120
60	2.0	PCM 60*120
70	1.7	PCM 70*120

*Specify “P” for positive polarity or “N” for negative polarity.

PCM D CONNECTOR 15 PIN

Pin	Signal	Parameters
1	Remote mA Program	0 to 10Vdc = 0 to 100% of rated output
2	Remote kV Program	0 to 10Vdc = 0 to 100% of rated output
3	High Voltage Enable/Inhibit	Open = HV Inhibit, Ground = HV ON
4	mA Monitor	0 to 10Vdc = 0 to 100% of rated output
5	Interlock Return	Connect to pin 6 to close interlock circuit
6	Interlock Out	Connect to pin 5 to close interlock circuit
7	kV Monitor	0 to 10Vdc = 0 to 100% of rated output
8	Local kV Program	Multi-turn front panel pot (screwdriver)
9	Power Supply Fault	0Vdc = No Fault, +15Vdc @ 1mA = Fault
10	+10Vdc Reference	+10Vdc @ 1mA maximum
11	Signal Ground	Signal Ground
12	Spare	No Connection
13	Spare	No Connection
14	Spare	No Connection
15	Local mA Program	Multi-turn front panel pot (screwdriver)

Tables & Diagrams

DIMENSIONS: in.[mm]

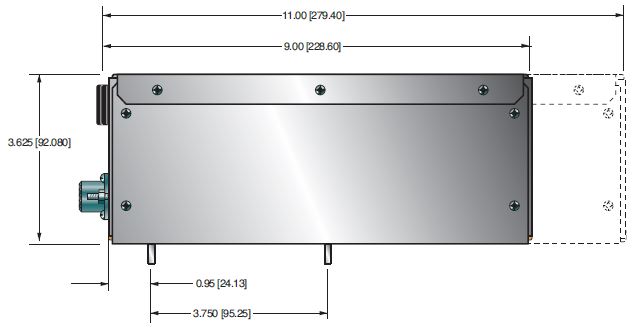

SIDE VIEW

PCM High Voltage Power Supply (Image 2)

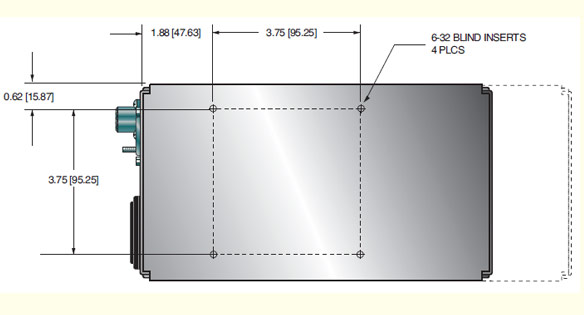

TOP VIEW

PCM Series Top View

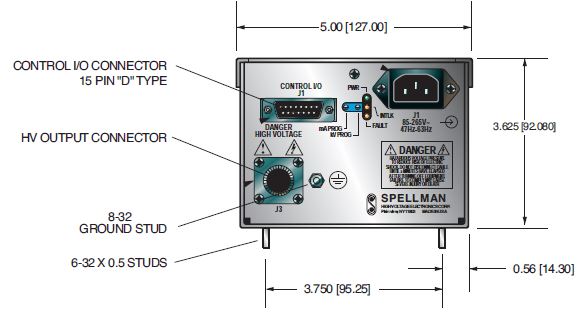

BACK VIEW
